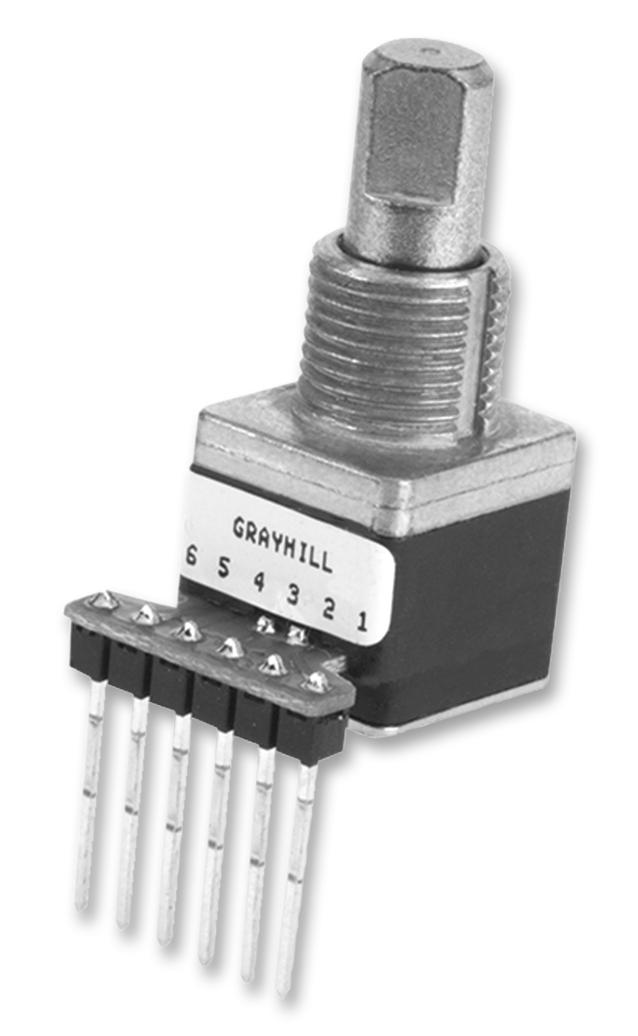

GRAYHILL - 62A22-02-P - Rotary Encoder, Optical, Incremental, 16 PPR, 16 Detents, Vertical, With Push Switch
- Supply Voltage Min: 4.75V
- Supply Voltage Max: 5V
- No. of Channels: 2Channels
- Rotational Speed Max: 100rpm
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Connector Type: Pins
- Contact Current DC Max: 10mA
- Contact Resistance: 10ohm
- External Depth: 13.72mm
- External Length / Height: 12.95mm
- External Width: 12.7mm
- No. of Pulses Per Revolution: 16CPR
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Rotational Life Cycles: 1000000
- Rotational Speed: 100rpm
- Shaft Diameter: 6.35mm
- Supply Current: 30mA
- Supply Voltage V DC: 5VDC
- Thread Length: 7.92mm
- Type: Optical Encoder
