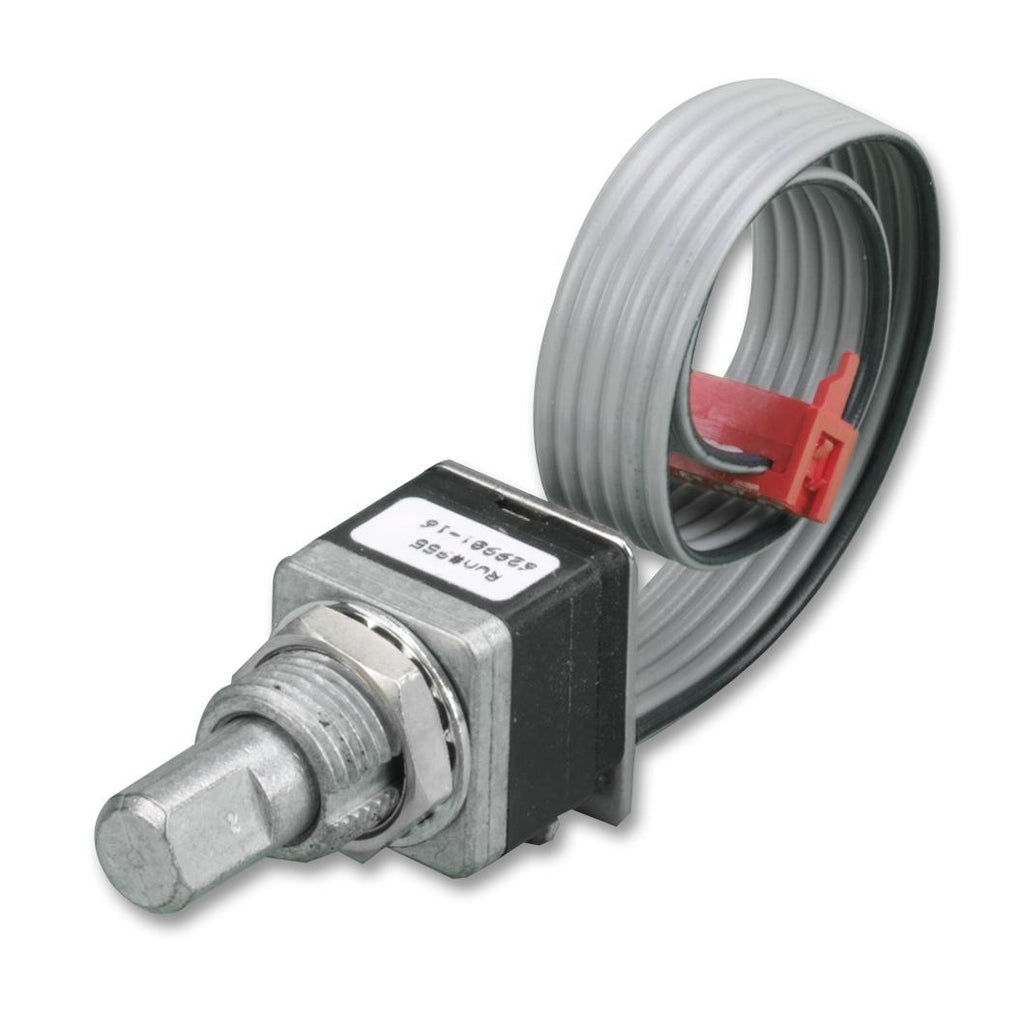

GRAYHILL - 62A22-02-060C - Rotary Encoder, Optical, Incremental, 16 PPR, 16 Detents, Vertical, With Push Switch
- Supply Voltage Min: 4.75V
 - Supply Voltage Max: 5V
 - No. of Channels: 2Channels
 - Rotational Speed Max: 100rpm
 - Product Range: -
 - SVHC: No SVHC (27-Jun-2018)
 - Case Material: Reinforced thermoplastic
 - Connector Type: Cable
 - Contact Resistance: 10ohm
 - Contact Voltage DC Max: 5V
 - Encoder Resolution: 16
 - External Depth: 30.78mm
 - External Length / Height: 13.72mm
 - External Width: 12.7mm
 - Fixing Hole Diameter: 9.35mm
 - Lead Length: 6"
 - No. of Pins: 6Pins
 - No. of Pulses Per Revolution: 16CPR
 - Operating Temperature Max: 85°C
 - Operating Temperature Min: -40°C
 - Operating Temperature Range: -40°C to +85°C
 - Pitch Spacing: 1.27mm
 - Rotation Mechanical Angle: 22.5°
 - Rotational Life Cycles: 1000000
 - Rotational Speed: 100rpm
 - Shaft Diameter: 6.35mm
 - Shaft Length: 9.52mm
 - Socket Type: AMP 215083-6 micro-match connector
 - Supply Current: 30mA
 - Supply Voltage V DC: 5V
 - Thread Length: 7.92mm
 - Thread Size: 38-32 UNEF-2A
 - Torque: 0.014123104N-m
 - Type: ½" Package, with Push Button
