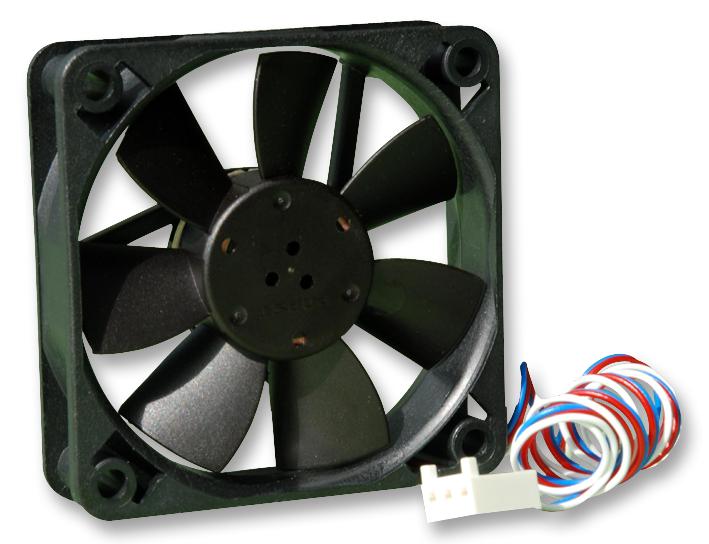

EBM-PAPST - 612N/2GML-096 - DC Axial Fan, 12 V, Square, 60 mm, 25 mm, Sintec Bearing, 14.7 CFM
- Supply Voltage: 12V
- Current Type: DC
- Fan Frame Size: 60mm
- External Depth: 25mm
- Noise Rating: 19dBA
- Flow Rate - Imperial: 14.7cu.ft/min
- Flow Rate - Metric: 25m³/h
- Bearing Type: Sintec
- Power Connection Type: 3 Lead Wires with Connector
- Current Rating: -
- Product Range: Compact Series
- Power Rating: -
- IP Rating: -
- SVHC: No SVHC (15-Jan-2019)
- External Height: 60mm
- External Width: 60mm
- Frame Dimensions: 60mm x 60mm x 25mm
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Power Consumption: 0.7W
- Type: Reverse Polarity Protected
