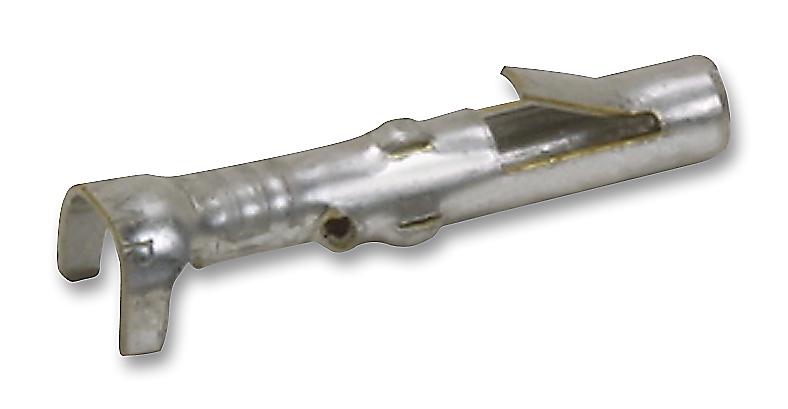

AMP - TE CONNECTIVITY - 60619-1 - Contact, Commercial MATE-N-LOK, Socket, Crimp, 14 AWG, Tin Plated Contacts
- Product Range: Commercial MATE-N-LOK Series
- Contact Gender: Socket
- Contact Termination Type: Crimp
- Wire Size AWG Max: 14AWG
- Contact Plating: Tin Plated Contacts
- For Use With: Commercial MATE-N-LOK Connectors
- Wire Size AWG Min: 20AWG
- Contact Material: Brass
- SVHC: No SVHC (15-Jan-2018)
- Cable Diameter Max: 3.3mm
- Cable Diameter Min: 2.5mm
- Contact Size: 14
- Contact Termination: Crimp
- Current Rating: 13A
- Gender: Receptacle
- Insulation Diameter Max: 3.3mm
- Insulation Diameter Min: 2.5mm
- Material: Brass
- Voltage Rating VAC: 250V
- Wire Area Size Max: 2mm²
- Wire Area Size Min: 0.5mm²
- Wire Size: 20AWG
- Wire Size (AWG): 20AWG to 14AWG
