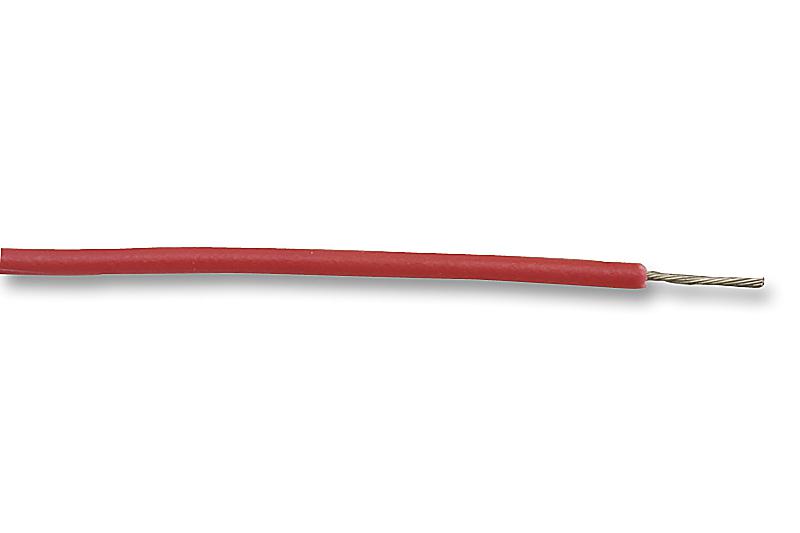

ALPHA WIRE - 5853/19 RD001 - Wire, Stranded, Hook Up, PTFE, Red, 26 AWG, 0.155 mm², 1000 ft, 304.8 m
- Jacket Material: PTFE
- Jacket Colour: Red
- Wire Gauge: 26AWG
- Conductor Area CSA: 0.15mm²
- Reel Length (Imperial): 1000ft
- Reel Length (Metric): 305m
- No. of Max Strands x Strand Size: 19 x 38AWG
- Voltage Rating: 600V
- Conductor Material: Silver Plated Copper
- External Diameter: 0.9mm
- Approval Specification: MIL-DTL-16878/4 (Type E), UL 1213
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Conductor Make-up: 19 / 38AWG
- Outer Diameter: 1.04mm
