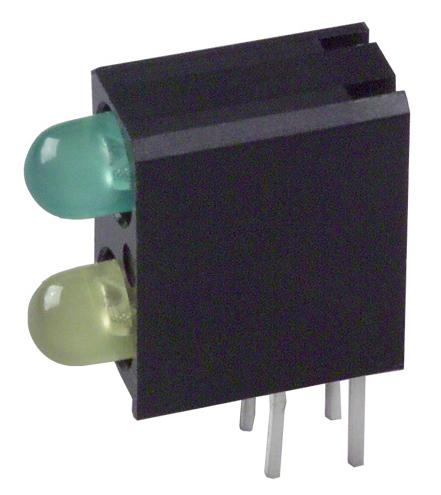

DIALIGHT - 553-0223F - Circuit Board Indicator, Green, Yellow, 2 LEDs, Through Hole, T-1 (3mm), Y 2mA, G 2mA
- LED Colour: Green, Yellow
- No. of LEDs: 2LEDs
- LED Mounting: Through Hole
- Bulb Size: T-1 (3mm)
- Forward Current / Colour: Y 2mA, G 2mA
- Luminous Intensity / Colour: Y 5mcd, G 1.6mcd
- Forward Voltage / Colour: Y 1.8V, G 1.9V
- Viewing Angle: 60°
- Height: 9.652mm
- Width: 4.318mm
- Product Range: 553 Series
- SVHC: No SVHC (15-Jun-2015)
- Display Size: 4.32mm x 9.65mm
- Forward Current If: 2mA
- Forward Current If Max: 2mA
- Forward Voltage: 1.9V
- Forward Voltage VF Max: 1.9V
- LED / Lamp Size: 3mm / T-1
- LED Configuration: Array
- LED Type: Multicolour
- Lens Shape: Round
- Luminous Intensity: 5mcd
- Luminous Intensity Typ: 5mcd
- No. of Pins: 4Pins
