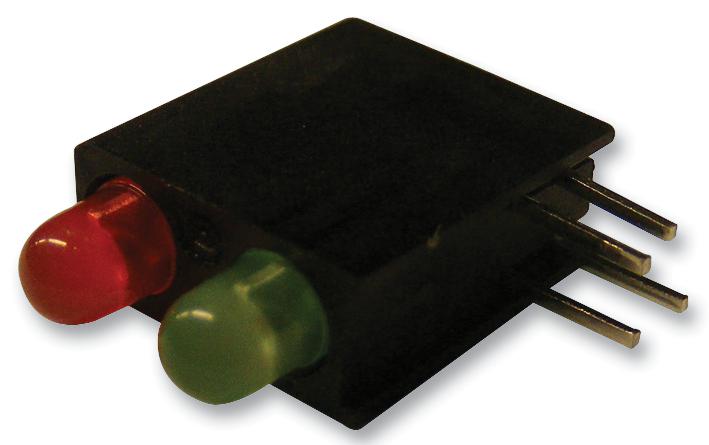

DIALIGHT - 553-0121F - Circuit Board Indicator, Green, Red, 2 LEDs, Through Hole, T-1 (3mm), R 10mA, G 10mA
- LED Colour: Green, Red
- No. of LEDs: 2LEDs
- LED Mounting: Through Hole
- Bulb Size: T-1 (3mm)
- Forward Current / Colour: R 10mA, G 10mA
- Luminous Intensity / Colour: R 10mcd, G 16mcd
- Forward Voltage / Colour: R 2V, G 2.1V
- Viewing Angle: 45°
- Height: 9.652mm
- Width: 4.318mm
- Product Range: 553 Series
- SVHC: No SVHC (15-Jun-2015)
- Forward Current If: 10mA
- Forward Current If Max: 10mA
- Forward Voltage: 2.1V
- Forward Voltage VF Max: 3V
- LED / Lamp Size: 3mm / T-1
- LED Configuration: Array
- LED Type: Multicolour
- Lens Shape: Round
- Luminous Intensity: 16mcd
- Luminous Intensity Typ: 16mcd
- No. of Pins: 4Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Operating Temperature Range: -25°C to +85°C
- Wavelength Green LED: 563nm
- Wavelength Red LED: 650nm
