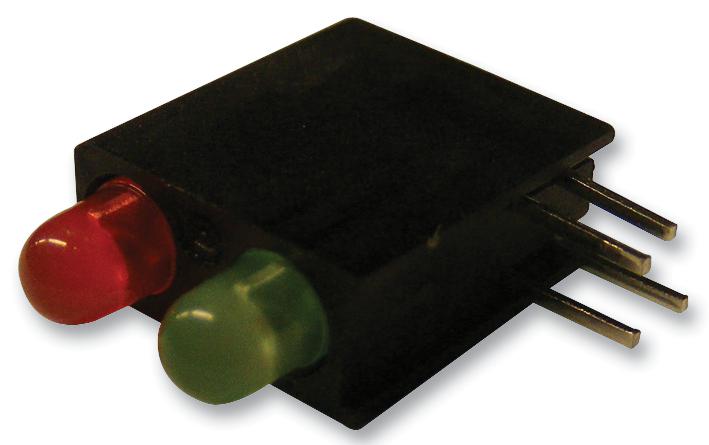

DIALIGHT - 553-0112-200F - Circuit Board Indicator, Green, Red, 2 LEDs, Through Hole, T-1 (3mm), R 10mA, G 10mA
- LED Colour: Green, Red
- No. of LEDs: 2LEDs
- LED Mounting: Through Hole
- Bulb Size: T-1 (3mm)
- Forward Current / Colour: R 10mA, G 10mA
- Luminous Intensity / Colour: R 10mcd, G 16mcd
- Forward Voltage / Colour: R 2V, G 2.1V
- Viewing Angle: 45°
- Height: 9.65mm
- Width: 4.32mm
- Product Range: -
- SVHC: No SVHC (15-Jun-2015)
- Display Size: 4.32mm x 9.65mm
- Forward Current If: 10mA
- Forward Current If Max: 10mA
- Forward Voltage: 2.1V
- Forward Voltage VF Max: 2.8V
- LED / Lamp Size: 3mm / T-1
- LED Configuration: Array
- LED Type: Multicolour
- Lens Shape: Round
- Luminous Intensity: 12.6mcd
- Luminous Intensity Typ: 12.6mcd
- No. of Pins: 4Pins
- Operating Temperature Max: 100°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +100°C
- Wavelength Green LED: 565nm
- Wavelength Red LED: 635nm
