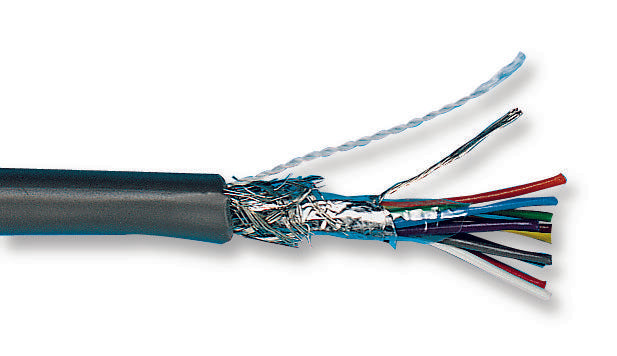

ALPHA WIRE - 5507 SL001 - Multicore Cable, Xtra Guard® 1, Screened, 7 Core, 22 AWG, 0.35 mm², 1000 ft, 304.8 m
- Cable Shielding: Screened
- No. of Cores: 7Core
- Wire Gauge: 22AWG
- Conductor Area CSA: 0.35mm²
- Reel Length (Imperial): 1000ft
- Reel Length (Metric): 304.8m
- Jacket Colour: Slate
- No. of Max Strands x Strand Size: 7 x 0.255mm
- Conductor Material: Tinned Copper
- Jacket Material: PVC
- External Diameter: 12.2mm
- Voltage Rating: 600V
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Cable Type: Foil + Braided Shield
- Conductor Make-up: 7 / 30AWG
- Outer Diameter: 12.2mm
- Shield Material: Foil / Braid
- Shield Type: Shielded
- Wire Size: 22AWG
