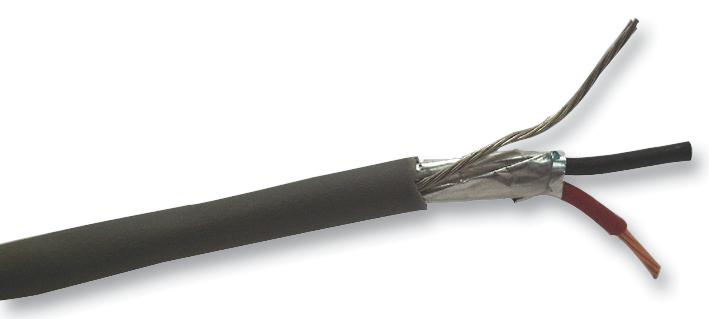

BELDEN - 5500FE.00152 - Multicore Cable, Security Audio, Screened, 2 Core, 22 AWG, 0.324 mm², 498.69 ft, 152 m
- Cable Shielding: Screened
- No. of Cores: 2Core
- Wire Gauge: 22AWG
- Conductor Area CSA: 0.324mm²
- Reel Length (Imperial): 498.69ft
- Reel Length (Metric): 152m
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 7 x 30AWG
- Conductor Material: Copper
- Jacket Material: PVC
- External Diameter: 3.3mm
- Voltage Rating: 300V
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Bend Radius Min: 1.3"
- Cable Type: Foil Shield
- Conductor Make-up: 2
- Current Rating: 2A
- Flammability Rating: UL 1666 Vertical Shaft
- Installation Tension Max: 23.7N
- Operating Temperature Max: 75°C
- Operating Temperature Min: -20°C
- Outer Diameter: 3.3mm
- Resistance per Metre: 16.1ohm
- Voltage Rating VAC: 300V
- Wire Size: 22AWG
