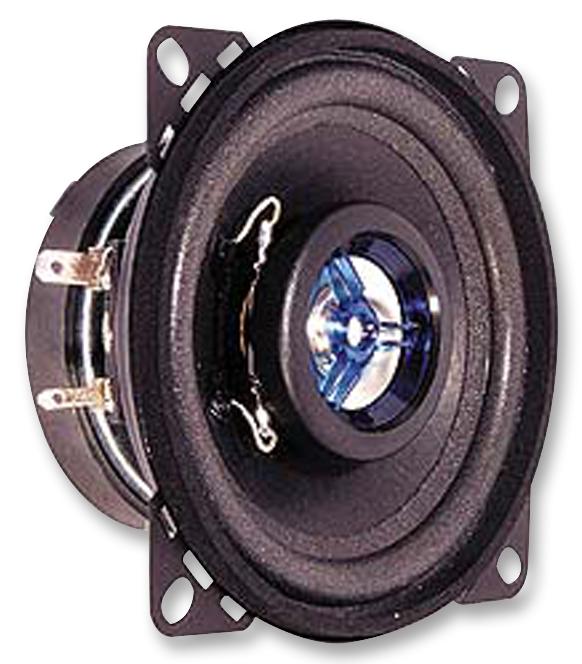

VISATON - 4692 - Speaker, Coaxial, 4 ", 2-Way, 70 W, 4 ohm, 70 Hz to 22000 Hz
- Transducer Function: Speaker
- Power Rating RMS: 40W
- Impedance: 4ohm
- Sensitivity (dB): -
- Resonant Frequency: 110Hz
- Frequency Response Min: 70Hz
- Frequency Response Max: 22kHz
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Cone Size: 4" (100mm)
- External Depth: 49mm
- External Height: 99mm
- External Width: 99mm
- Fixing Centres: 115mm
- Panel Cutout Diameter: 93mm
- Power Rating: 70W
- Sound Level SPL: 84dB
- Throat Diameter: 95mm
- Weight: 460g
