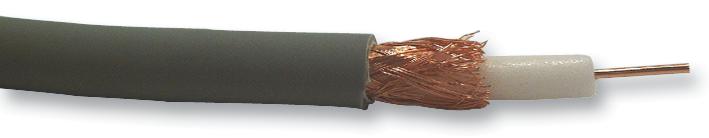

BELDEN - 443945.001 - Coaxial Cable, RG59, 20 AWG, 75 ohm, 328 ft, 100 m
- Coaxial Cable Type: RG59
- Wire Gauge: 20AWG
- Conductor Area CSA: -
- Impedance: 75ohm
- Reel Length (Imperial): 328ft
- Reel Length (Metric): 100m
- Jacket Colour: Grey
- Jacket Material: PE
- Conductor Material: Copper
- No. of Max Strands x Strand Size: Solid
- External Diameter: 5.9mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Attenuation @ 100MHz: 8.53dB
- Attenuation @ 10MHz: 2.95dB
- Attenuation @ 1GHz: 27.9dB
- Attenuation @ 1MHz: 0.98dB
- Attenuation @ 200MHz: 11.8dB
- Attenuation @ 400MHz: 16.4dB
- Attenuation @ 50MHz: 6.23dB
- Attenuation @ 5MHz: 2.13dB
- Conductor Make-up: 1 / 0.8mm
- Core-Screen Capacitance: 53.5pF/m
- Operating Temperature Max: 70°C
- Operating Temperature Min: -30°C
- Outer Diameter: 5.9mm
- Primary Conductor Resistance: 32.81ohm/km
- Screen Resistance: 11.484ohm/km
- Screen Type Primary: Braid
- Secondary Insulation Colour: Grey
- Secondary Insulation Material: Foamed PE
- Velocity of Propagation (%): 83%
- Voltage Rating VAC: 2500VDC
- Wire Size: 20AWG
