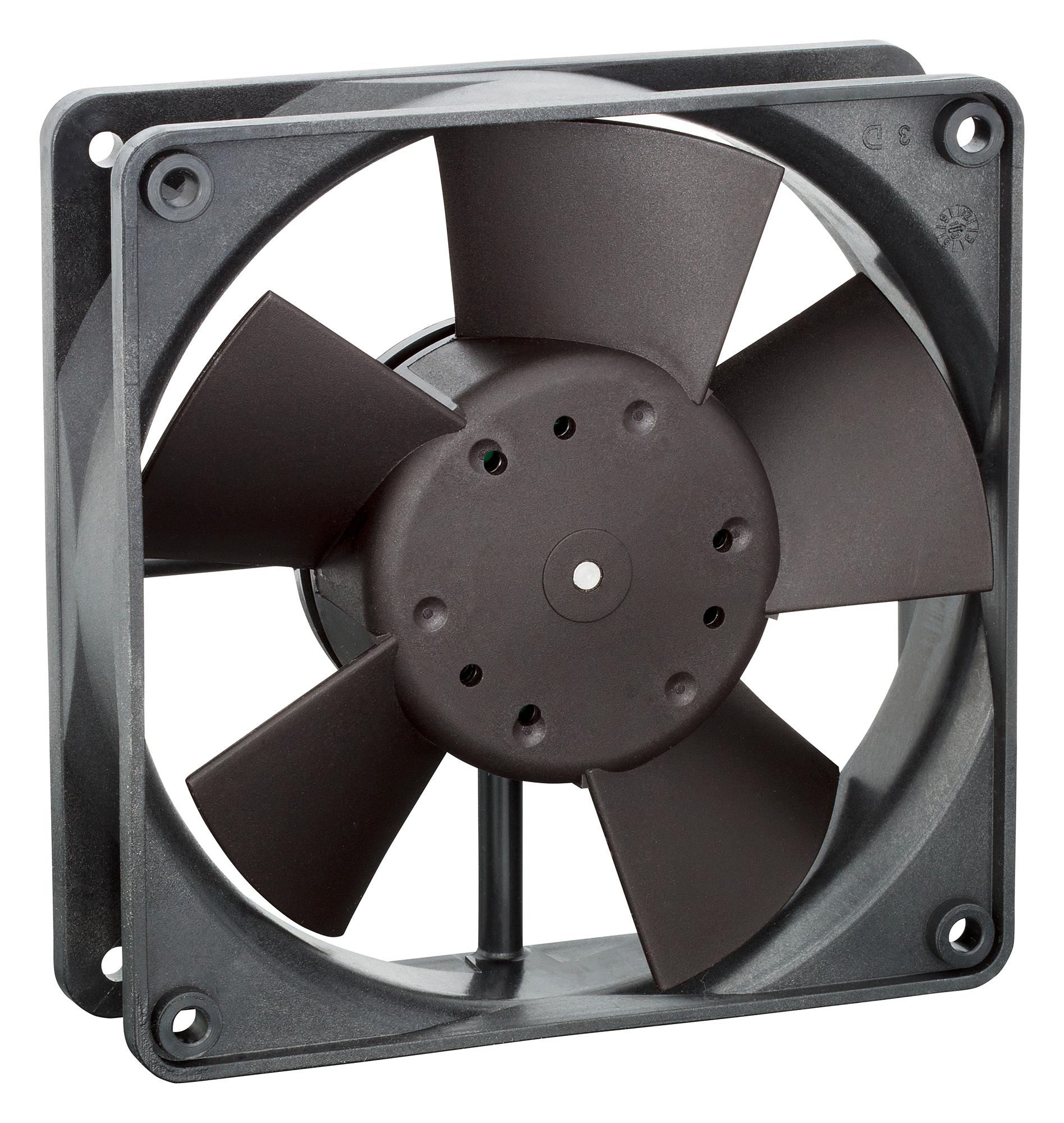

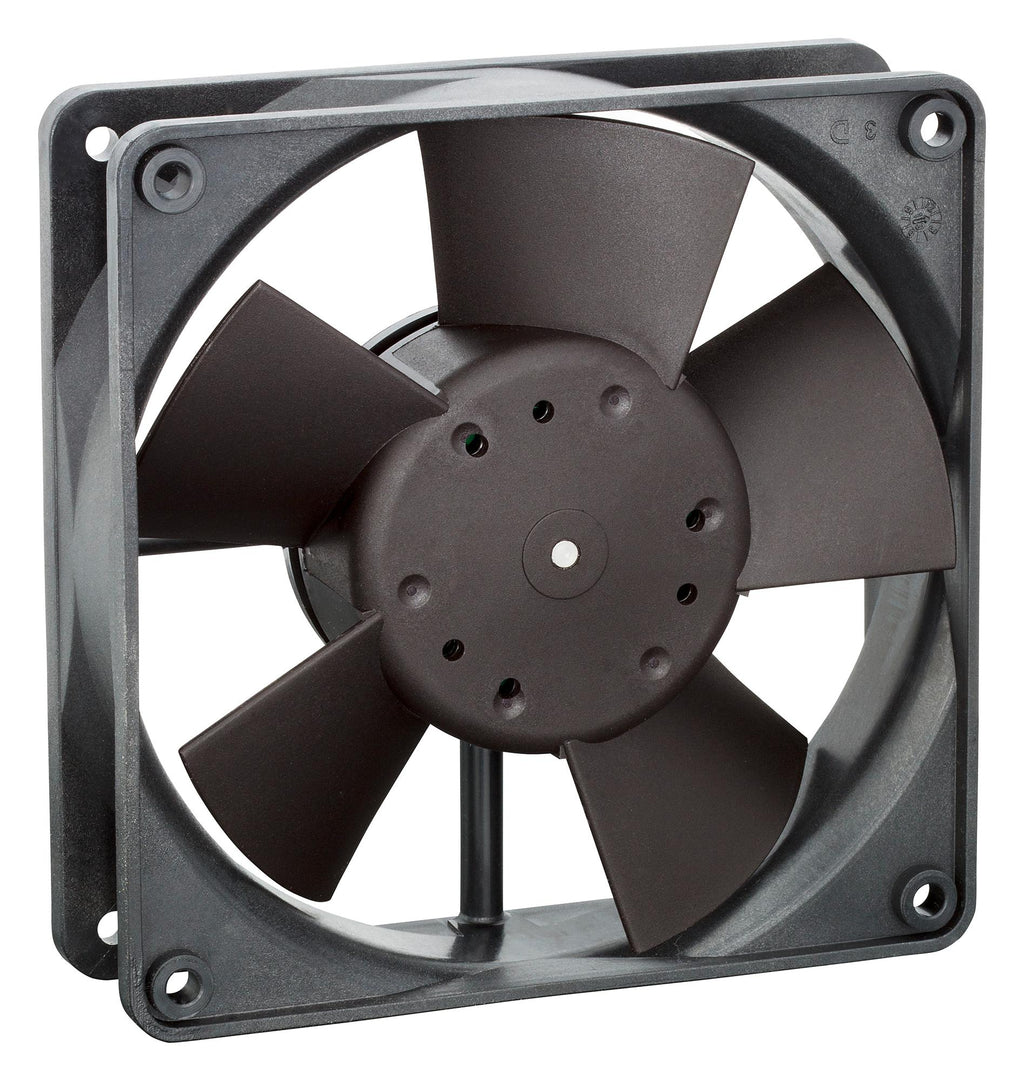

EBM-PAPST - 4314L - DC Axial Fan, 24 V, Square, 119 mm, 32 mm, Ball Bearing, 55.9 CFM
- Supply Voltage: 24V
- Current Type: DC
- Fan Frame Size: 119mm
- External Depth: 32mm
- Noise Rating: 30dBA
- Flow Rate - Imperial: 55.9cu.ft/min
- Flow Rate - Metric: 95m³/h
- Bearing Type: Ball
- Power Connection Type: 2 Lead Wires
- Current Rating: -
- Product Range: 4300 Series
- Power Rating: 1.2W
- IP Rating: IP20
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CSA, UL
- External Height: 119mm
- External Width: 119mm
- Fixing Centres: 82.5mm
- Fixing Hole Diameter: 4.5mm
- Frame Dimensions: 119mm x 119mm x 32mm
- Input Voltage Max: 28V
- Input Voltage Min: 12V
- Operating Temperature Max: 75°C
- Operating Temperature Min: -20°C
- Operating life Time: 80000h
- Panel Cutout Diameter: 116mm
- Power Consumption: 1.2W
- Standard: VDE0730
- Supply Voltage DC Max: 28V
- Supply Voltage DC Min: 12V
- Type: Super Low Noise, 119mm
