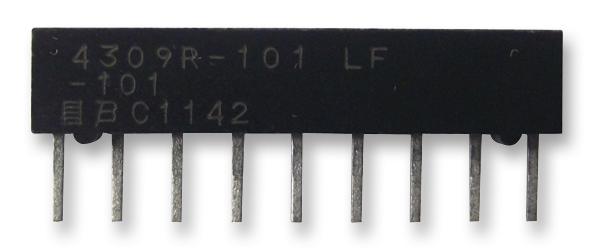

BOURNS - 4309R-101-473LF - Fixed Network Resistor, 47 kohm, Bussed, 8 Resistors, SIP, PC Pin, ± 2%
- Resistance: 47kohm
- Product Range: 4300R Series
- No. of Elements: 8Elements
- Network Circuit Type: Bussed
- Resistor Case Style: SIP
- No. of Pins: 9Pins
- Voltage Rating: 100V
- Power Rating per Element: 200mW
- Resistance Tolerance: ± 2%
- Temperature Coefficient: ± 100ppm/°C
- Automotive Qualification Standard: -
- SVHC: Lead (15-Jan-2019)
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Power Rating: 1.13W
- Resistance R1: 47kohm
- Resistor Element Material: Thick Film
- Resistor Mounting: Through Hole
- Resistor Terminals: Radial Leaded
