description

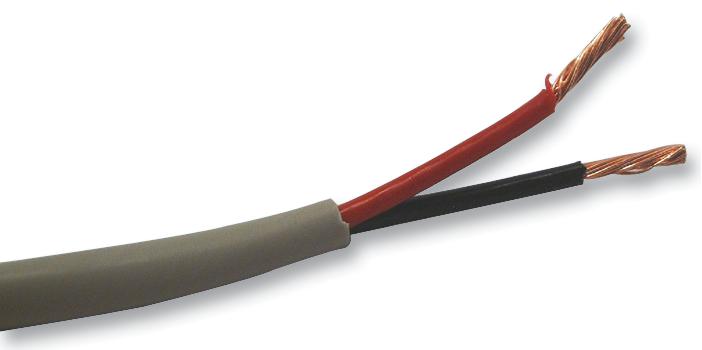

BELDEN - 4200UE.00100 - Multicore Cable, Security Alarm, Unscreened, 2 Core, 16 AWG, 1.31 mm², 328 ft, 100 m
- Cable Shielding: Unscreened
- No. of Cores: 2Core
- Wire Gauge: 16AWG
- Conductor Area CSA: 1.31mm²
- Reel Length (Imperial): 328ft
- Reel Length (Metric): 100m
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 19 x 0.286mm
- Conductor Material: Copper
- Jacket Material: PE
- External Diameter: 4.7mm
- Voltage Rating: 300V
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Cable Type: Unshielded
- Conductor Make-up: 19 / 29AWG
- Current Rating: 6.25A
- Drain Wire Type: 16 AWG
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Outer Diameter: 4.7mm
- Secondary Insulation Material: PE
- Wire Size: 16AWG
