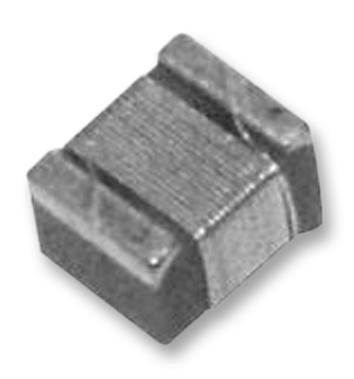

TE CONNECTIVITY - 36541E8N2JTDG - Wirewound Inductor, 8.2 nH, 0.058 ohm, 5.4 GHz, 1.5 A, 0402 [1005 Metric], 36541E
- Inductance: 8.2nH
- Product Range: 36541E Series
- DC Current Rating: 1.5A
- High Frequency Inductor Case: 0402 [1005 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 0.058ohm
- Inductance Tolerance: ± 5%
- Self Resonant Frequency Min: 5.4GHz
- SVHC: No SVHC (15-Jan-2018)
- Inductor Case Style: 0402 [1005 Metric]
