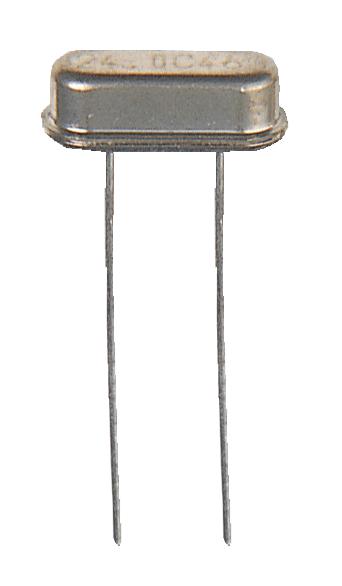

EUROQUARTZ - 3.57954MHZ HC49-4H/30/50/-40+85/18PF/ATF - Crystal, 3.57954 MHz, Through Hole, 10.77mm x 4.34mm, 50 ppm, 18 pF, 30 ppm, HC49
- Frequency Nom: 3.57954MHz
- Crystal Case: Through Hole, 10.77mm x 4.34mm
- Frequency Stability + / -: 50ppm
- Load Capacitance: 18pF
- Frequency Tolerance + / -: 30ppm
- Product Range: HC49 Series
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- SVHC: No SVHC (15-Jan-2019)
- Accuracy: ± 30ppm
- Crystal Mounting Type: Through Hole
- Frequency: 3.579545MHz
- Frequency Stability: ± 50ppm
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +85°C
- Output Frequency: 3.579545MHz
- Temperature Stabilty: ± 50ppm
