description

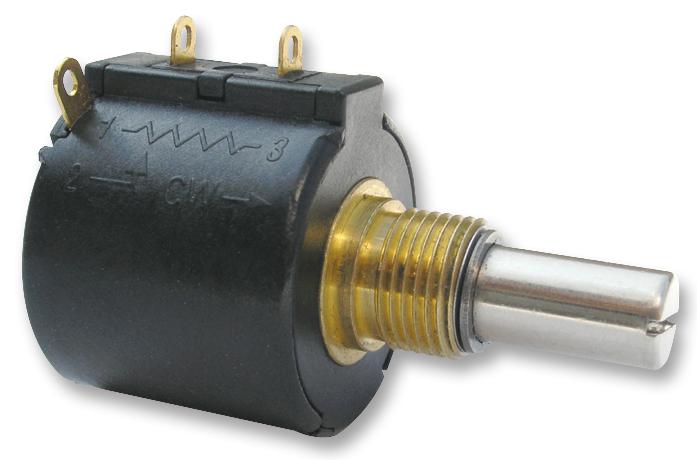

BOURNS - 3548S-1AA-103A - Rotary Potentiometer, Wirewound, 10 kohm, 5 Turns, Linear, 1.5 W, ± 3%, 3548S
- Track Resistance: 10kohm
- No. of Turns: 5Turns
- Track Taper: Linear
- Power Rating: 1.5W
- Resistance Tolerance: ± 3%
- Product Range: 3548S Series
- Potentiometer Mounting: Bushing
- Shaft Diameter: 6.34mm
- No. of Gangs: 1
- Adjustment Type: Screwdriver Slot
- Shaft Length: 11.2mm
- SVHC: Lead (15-Jan-2019)
- Body Diameter: 22.479mm
- Bush Thread Length: 6.396mm
- External Length / Height: 19.812mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Resistance: 10kohm
- Resistor Element Material: Wirewound
- Temperature Coefficient: ± 50ppm/°C
- Thread Size: 3/8" 32-UNEF
