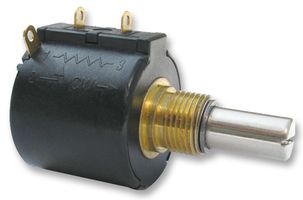

3547S-1AA-502A - Rotary Potentiometer, Wirewound, 5 kohm, 3 Turns, Linear, 1 W, ± 3%, 3547S Series - BOURNS

BOURNSUGS :3547S-1AA-502A Code de commande:4014757

Prix:
Prix ​​promotionnel€44,35

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (42 unité)

Documenten en downloads

description

  • Adjustment Type: Screwdriver Slot
  • No. of Gangs: 1
  • No. of Turns: 3Turns
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Potentiometer Mounting: Panel Mount
  • Potentiometer Terminals: Solder Lug
  • Potentiometer Type: Rotary
  • Power Rating: 1W
  • Product Height: -
  • Product Length: -
  • Product Range: 3547S Series
  • Product Width: -
  • Resistance Tolerance: ± 3%
  • Resistor Case / Package: -
  • Resistor Technology: Wirewound
  • Shaft Diameter: 6.35mm
  • Shaft Length: 20.637mm
  • Temperature Coefficient: ± 50ppm/°C
  • Track Resistance: 5kohm
  • Track Taper: Linear
