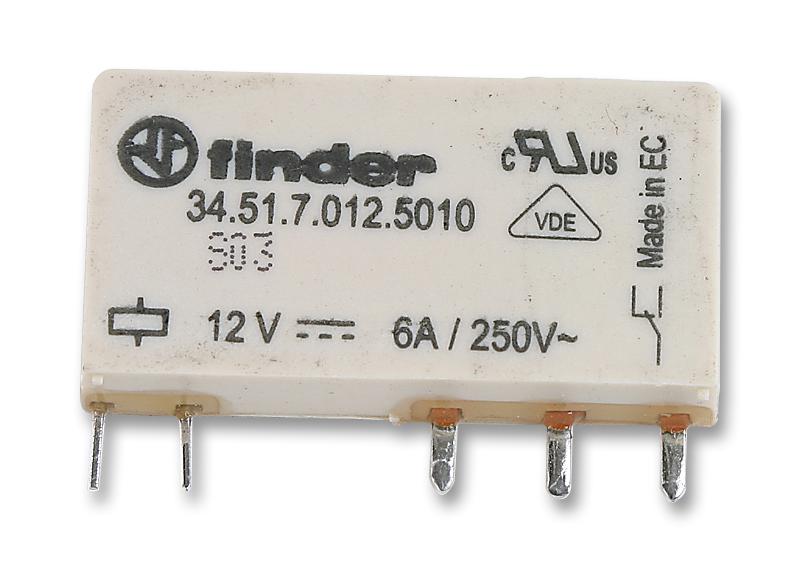

FINDER - 34.51.7.012.5010 - General Purpose Relay, 34 Series, Power, SPDT, 12 VDC, 6 A
- Contact Configuration: SPDT
 - Coil Voltage: 12VDC
 - Contact Current: 6A
 - Product Range: 34 Series
 - Relay Mounting: Through Hole
 - Coil Type: DC Sensitive
 - Contact Voltage VAC: 250VAC
 - Relay Terminals: Solder
 - Contact Voltage VDC: 30V
 - Contact Material: Silver Nickel Gold
 - Coil Resistance: 840ohm
 - SVHC: No SVHC (15-Jan-2019)
 - Approval Bodies: CSA, GOST, UL, VDE
 - Coil Current: 14.2mA
 - Coil Voltage VDC Nom: 12V
 - Contact Current AC Max: 6A
 - Contact Current Max: 10A
 - Contact Current Rating: 6A
 - Contact Voltage AC Max: 400V
 - Contact Voltage AC Nom: 250V
 - DC Coil Power: 0.17W
 - External Depth: 5mm
 - External Height: 15mm
 - External Length / Height: 15mm
 - External Width: 28mm
 - No. of Mechanical Operations: 10000000
 - Nom Operating Power: 170mW
 - Operating Temperature Max: 85°C
 - Operating Temperature Min: -40°C
 - Power Rating: 1.5kVA
 - Relay Type: Power - General Purpose
 - Switching Voltage AC / DC Min: 250VAC
