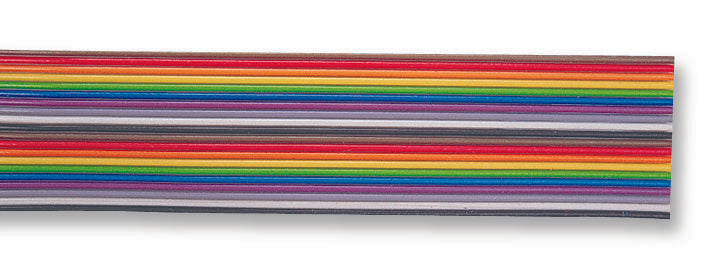

3M - 3302-20 - Ribbon Cable, Colour Coded Flat, Per M, Unscreened, 20 Core, 28 AWG, 0.072 mm²
- Cable Shielding: Unscreened
- No. of Cores: 20Core
- Wire Gauge: 28AWG
- Conductor Area CSA: 0.072mm²
- Reel Length (Imperial): -
- Reel Length (Metric): -
- Jacket Colour: Multi-coloured
- Cable Width: 25.4mm
- No. of Max Strands x Strand Size: 7 x 36AWG
- Pitch Spacing: 1.27mm
- Voltage Rating: 300V
- Conductor Material: Tinned Copper
- Jacket Material: PVC
- Ribbon Cable Type: Flat Ribbon Cable
- Product Range: 3302 Series
- Capacitance: 46.3pF/m
- Impedance: 105ohm
- Inductance: 0.49µH/m
- Insulation Resistance: 1000Mohm
