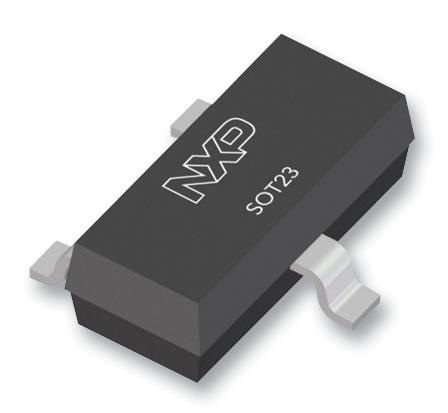

NEXPERIA - 2N7002BK,215 - Power MOSFET, N Channel, 60 V, 350 mA, 1 ohm, SOT-23, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 350mA
- Drain Source Voltage Vds: 60V
- On Resistance Rds(on): 1ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 1.6V
- Power Dissipation Pd: 440mW
- Transistor Case Style: SOT-23
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Current Id Max: 350mA
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Voltage Vgs Max: 20V
