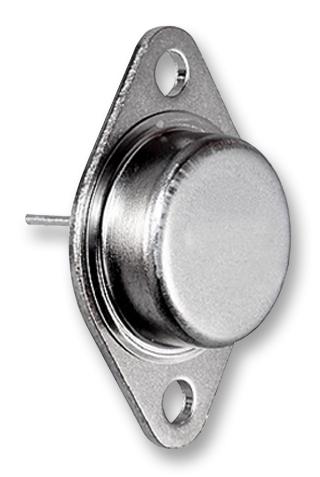

MULTICOMP PRO - 2N5686 - Bipolar (BJT) Single Transistor, NPN, 80 V, 50 A, 300 W, TO-3, Through Hole
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 80V
- Transition Frequency ft: 2MHz
- Power Dissipation Pd: 300W
- DC Collector Current: 50A
- DC Current Gain hFE: 15hFE
- Transistor Case Style: TO-3
- No. of Pins: 2Pins
- Operating Temperature Max: 200°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2018)
- Collector Emitter Saturation Voltage Vce(on): 5V
- Current Ic Continuous a Max: 50A
- Hfe Min: 5
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +200°C
- Termination Type: Through Hole
