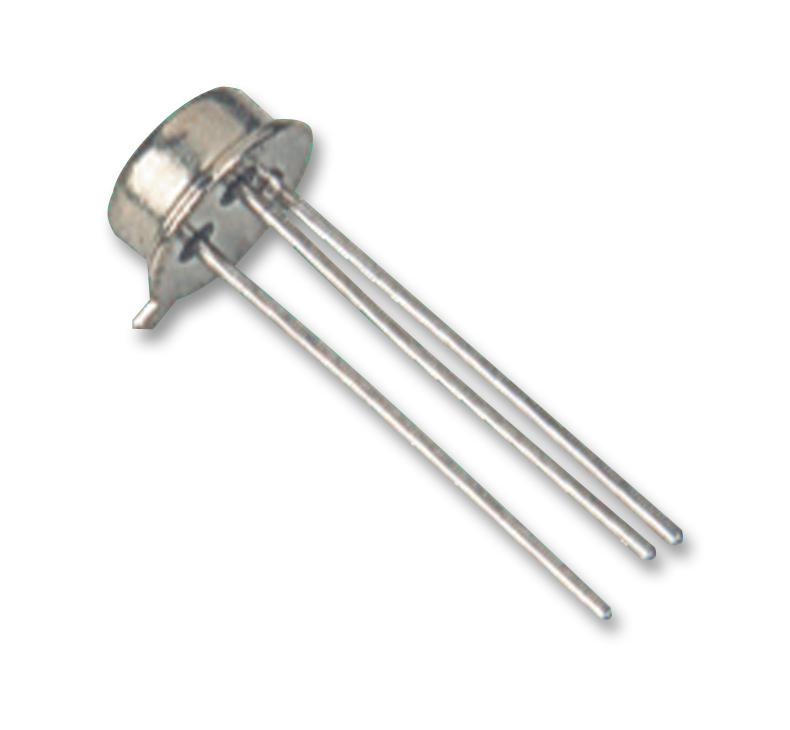

MULTICOMP PRO - 2N5322 - Bipolar (BJT) Single Transistor, General Purpose, PNP, 75 V, 2 A, 10 W, TO-39, Through Hole
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: -75V
- Transition Frequency ft: -
- Power Dissipation Pd: 1W
- DC Collector Current: -2A
- DC Current Gain hFE: 30hFE
- Transistor Case Style: TO-39
- No. of Pins: 3Pins
- Operating Temperature Max: 200°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Collector Emitter Saturation Voltage Vce(on): 500mV
- Continuous Collector Current Ic Max: 2A
- Current Ic @ Vce Sat: 500mA
- Current Ic Continuous a Max: 2A
- Current Ic hFE: 500mA
- Gain Bandwidth ft Min: 50MHz
- Hfe Min: 30
- No. of Transistors: 1
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +200°C
- Power Dissipation Ptot Max: 1W
- Voltage Vcbo: 100V
