description

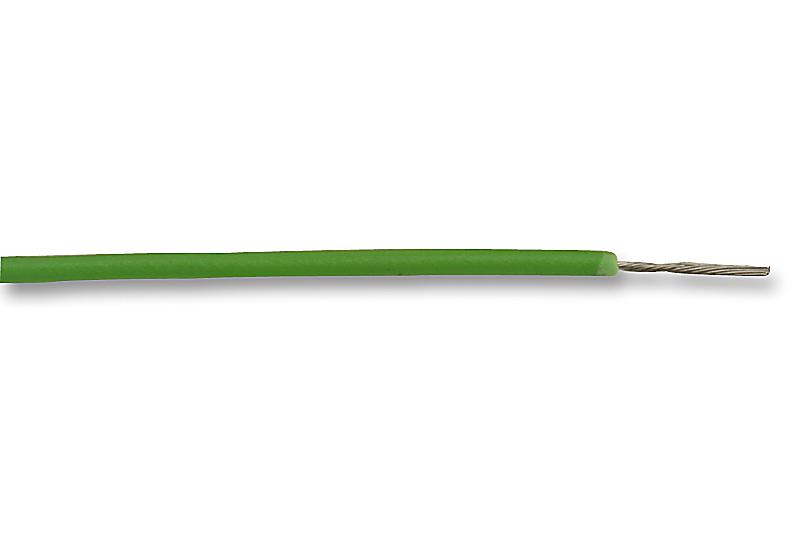

ALPHA WIRE - 2842/7 GR001 - Wire, Stranded, Hook Up, PTFE, Green, 28 AWG, 0.072 mm², 1000 ft, 305 m
- Jacket Material: PTFE
- Jacket Colour: Green
- Wire Gauge: 28AWG
- Conductor Area CSA: 0.072mm²
- Reel Length (Imperial): 1000ft
- Reel Length (Metric): 304.8m
- No. of Max Strands x Strand Size: 7 x 36AWG
- Voltage Rating: 250V
- Conductor Material: Tinned Copper
- External Diameter: 0.686mm
- Approval Specification: MIL-DTL-16878/6 (Type ET), UL VW-1
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Conductor Make-up: 7 / 36AWG
- Outer Diameter: 0.68mm
- Wire Size: 28AWG
