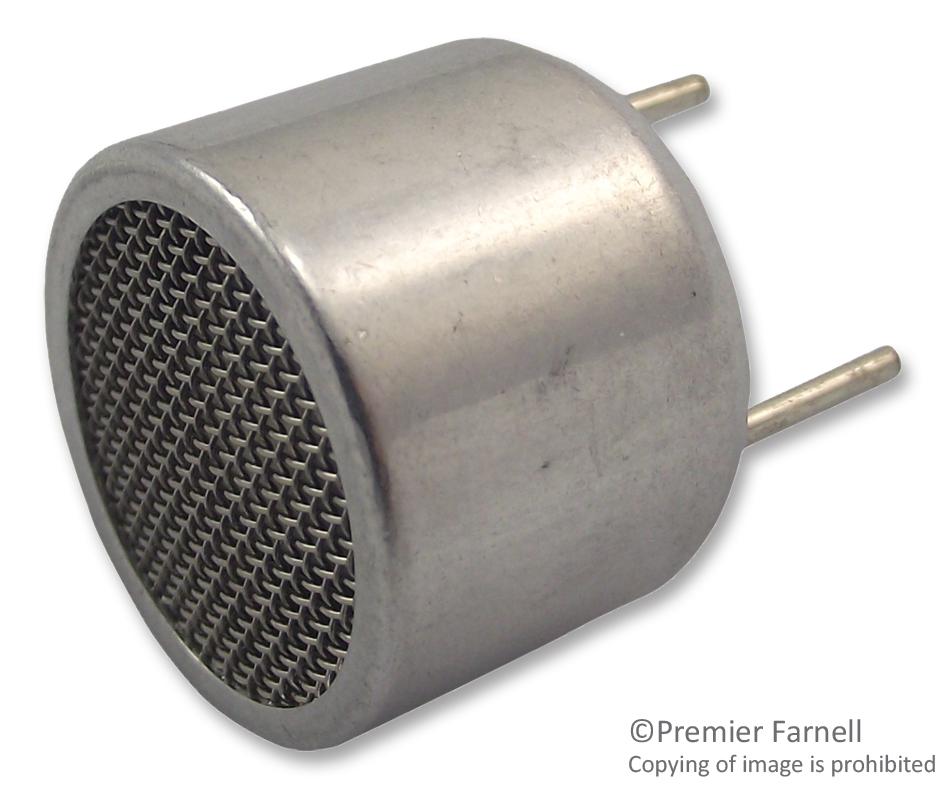

PROWAVE - 250ST180 - Transducer, Ultrasonic, Transmitter, 112 dB
- Transducer Function: Transmitter
- Tones: -
- Supply Voltage Min: -
- Supply Voltage Max: -
- Operating Current Max: -
- Sound Level SPL: 112dB
- Sound Level Distance: 30cm
- Resonant Frequency: 25kHz
- Product Range: 250Sx180 Series
- SVHC: No SVHC (15-Jan-2018)
- Angle: 95°
- Beam Divergence: 95°
- Capacitance: 2400pF
- External Diameter: 18.2mm
- External Length / Height: 14.2mm
- Frequency: 25kHz
- Height: 14.2mm
- Input Voltage: 20VAC
- Lead Length: 10mm
- Lead Spacing: 11.8mm
- Material: Aluminium
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Operating Temperature Range: -30°C to +80°C
- Sensitivity: 112dB
