description

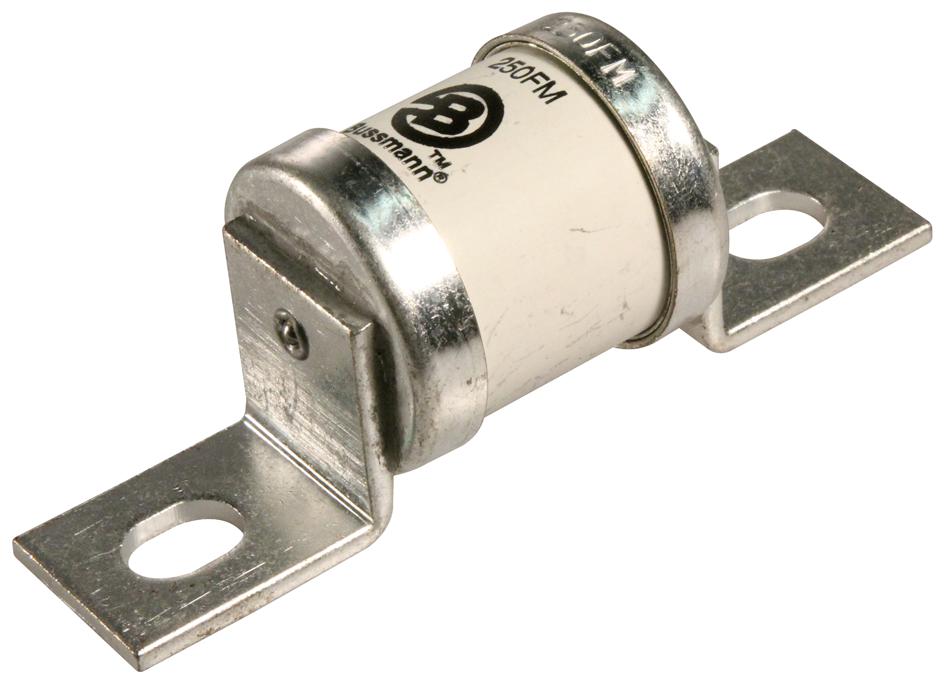

EATON BUSSMANN - 250FM - Fuse, Semiconductor, FM, 250 A, Fast Acting, 38.1mm x 113mm, 1.5" x 4.45", 500 VDC
- Product Range: FM Series
- Fuse Current: 250A
- Blow Characteristic: Fast Acting
- Fuse Size Metric: 38.1mm x 113mm
- Fuse Size Imperial: 1.5" x 4.45"
- Voltage Rating V DC: 500VDC
- Voltage Rating VAC: 690VAC
- Approval Bodies: BS
- Approval Category: UL Recognised
- Body Diameter: 38.1mm
- Body Length: 50mm
- External Length / Height: 113mm
- Fuse Size Code: FM
- Fuse Type Blowing Characteristic: T
- I2t @ 415V: 20500s
- I2t @ 660V: 37500s
- I²t Pre-arcing: 5200
- Power Dissipation Pd: 48W
