description

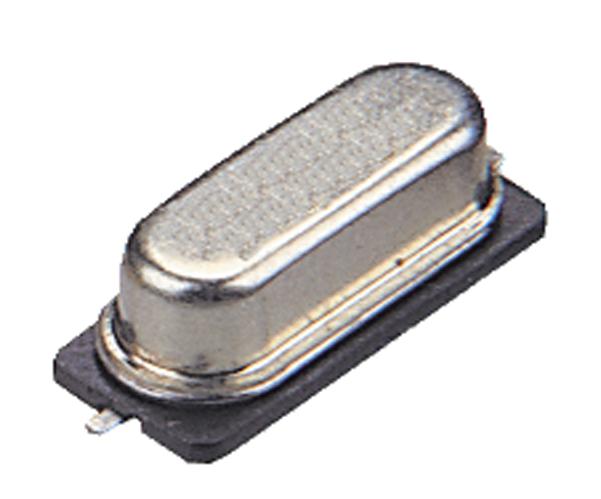

EUROQUARTZ - 25.000MHZ 49USMX/30/50/-40+85/18PF/ATF - Crystal, 25 MHz, SMD, 12.4mm x 4.5mm, 50 ppm, 18 pF, 30 ppm, 49USMX
- Frequency Nom: 25MHz
- Crystal Case: SMD, 12.4mm x 4.5mm
- Frequency Stability + / -: 50ppm
- Load Capacitance: 18pF
- Frequency Tolerance + / -: 30ppm
- Product Range: 49USMX Series
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- SVHC: No SVHC (15-Jan-2019)
- Accuracy: ± 30ppm
- Crystal Mounting Type: SMD
- Frequency: 25MHz
- Frequency Stability: ± 50ppm
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +85°C
- Output Frequency: 25MHz
- Temperature Stabilty: ± 50ppm
