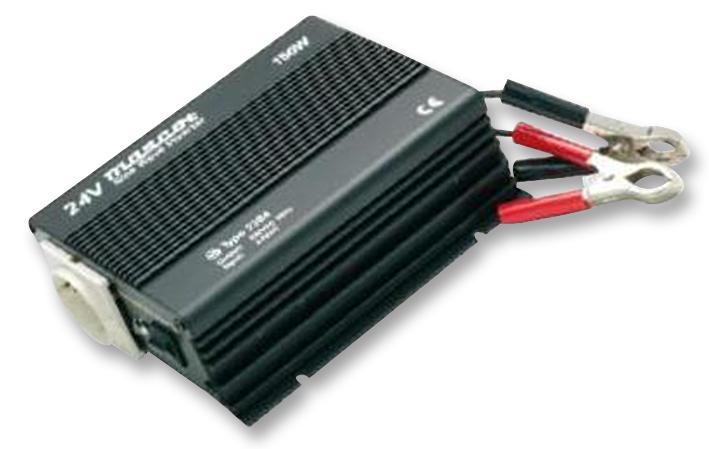

MASCOT - 2284000046 - DC/AC Inverter, ITE, 30 VDC, 230 V, 150 W, 2284 Series
- Input Voltage Max: 30VDC
- No. of Outputs: -
- Output Voltage: 230V
- Output Power: 150W
- Product Range: -
- Length: 190mm
- Width: 148mm
- Height: 67mm
- SVHC: No SVHC (15-Jan-2019)
- Efficiency: 90%
- External Depth: 148mm
- External Length / Height: 67mm
- External Width: 217mm
- Input Current Min: 0.5A
- Input Voltage: 24V
- Input Voltage Min: 20VDC
- No. of Outlets: 1Outlets
- Power Rating: 150W
- Supply Voltage: 24V
- Supply Voltage Max: 30V
- Supply Voltage Min: 20V
- Surge Power Rating: 300W
- Weight Min: 1.15kg
