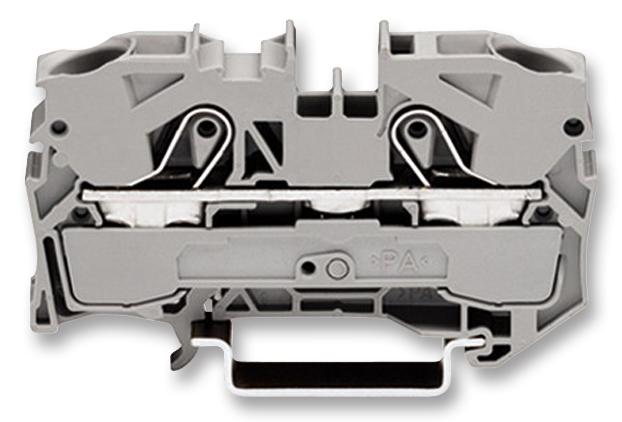

WAGO - 2010-1201 - DIN Rail Mount Terminal Block, 2 Ways, 20 AWG, 6 AWG, 16 mm², Clamp, 57 A
- No. of Positions: 2Ways
- Wire Size AWG Min: 20AWG
- Wire Size AWG Max: 6AWG
- Conductor Area CSA: 16mm²
- Wire Connection Method: Clamp
- Rated Current: 57A
- Rated Voltage: 800V
- No. of Levels: 1
- Product Range: 2010 Series
- SVHC: No SVHC (15-Jan-2018)
- Approvals / Standards: EN 60079, EN 60241
- Connector Mounting: DIN Rail Mount
- Connector Type: Terminal Block, DIN Rail
- Contact Material: Steel
- External Width: 10mm
- Pitch Spacing: 10mm
- Voltage Rating VAC: 800V
- Wire Area Size Max: 10mm²
- Wire Area Size Min: 0.5mm²
