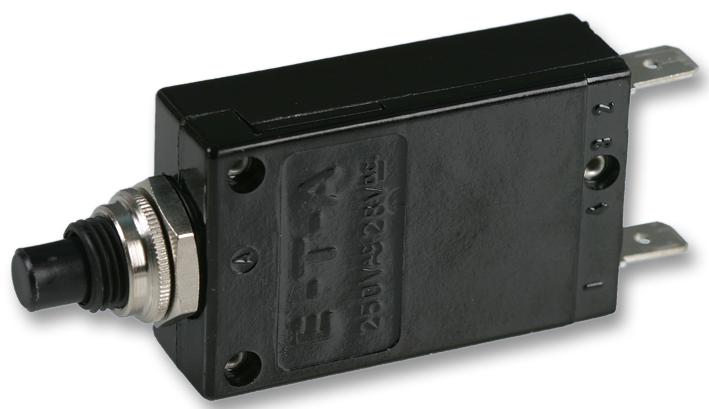

ETA - 2-5700-IG1-P10-DD-000040 25A - Thermal Circuit Breaker, 5700-02-01, 25 A, 1 Pole, 28 VDC, 250 VAC, Panel
- Product Range: 2-5700 Series
- Current Rating: 25A
- No. of Poles: 1 Pole
- Voltage Rating V DC: 28VDC
- Voltage Rating VAC: 250VAC
- Circuit Breaker Mounting: Panel
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, BV, LEoS, SEMKO, SEV, UL, VDE
- External Depth: 14.5mm
- External Length / Height: 46.5mm
- External Width: 29mm
- Insulation Resistance: 100Mohm
- Internal Resistance: 0.02ohm
- No. of Mechanical Operations: 5000
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
