NEXPERIA - 1PS302,115 - Small Signal Diode, Dual Series, 85 V, 200 mA, 1.2 V, 4 ns, 4 A
- Diode Configuration: Dual Series
- Repetitive Reverse Voltage Vrrm Max: 85V
- Forward Current If(AV): 200mA
- Forward Voltage VF Max: 1.2V
- Reverse Recovery Time trr Max: 4ns
- Forward Surge Current Ifsm Max: 4A
- Operating Temperature Max: 150°C

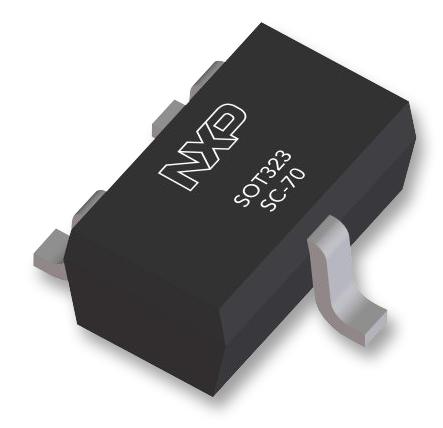

- Diode Case Style: SOT-323
- No. of Pins: 3Pins
- Product Range: 1PS3 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Current Ifsm: 4A
- Junction Temperature Tj Max: 150°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Reverse Recovery Time trr Typ: 4ns
- Termination Type: Surface Mount Device
