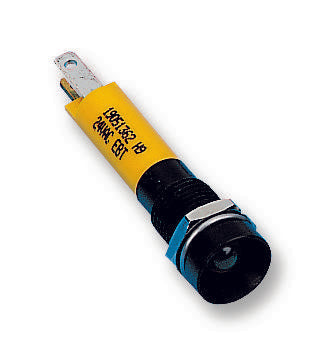

CML INNOVATIVE TECHNOLOGIES - 19031352 - LED Panel Mount Indicator, Black Chrome Bezel, Yellow, 24 VDC, 6 mm, 15 mA, 6 mcd, IP40
- LED Colour: Yellow
- Operating Voltage: 24VDC
- Mounting Hole Dia: 6mm
- Forward Current If: 15mA
- Luminous Intensity: 6mcd
- IP / NEMA Rating: IP40
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CE
- Bezel Diameter: 7mm
- Bulb Size: 3mm
- Current If Luminous Intensity: 18mA
- External Diameter: 7mm
- Fixing Hole Diameter: 6mm
- Forward Current If Max: 15mA
- Forward Voltage: 24V
- Forward Voltage VF Max: 24V
- LED / Lamp Size: 3mm
- Length Behind Bezel: 30.4mm
- Lens Shape: Round
- Luminous Intensity Typ: 25mcd
- Operating Temperature Max: 70°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +70°C
- Operating Voltage Tolerance +: 10%
- Operating Voltage Tolerance -: 10%
- PIV Max: 5V
- Peak Forward Current: 18mA
- Peak Wavelength: 590nm
- Supply Voltage: 24V
- Supply Voltage V DC: 24V
- Thread Pitch: 0.75mm
- Thread Size: M6
- Voltage Rating V DC: 24V
- Voltage Vf Typ: 24V
- Wavelength Typ: 590nm
