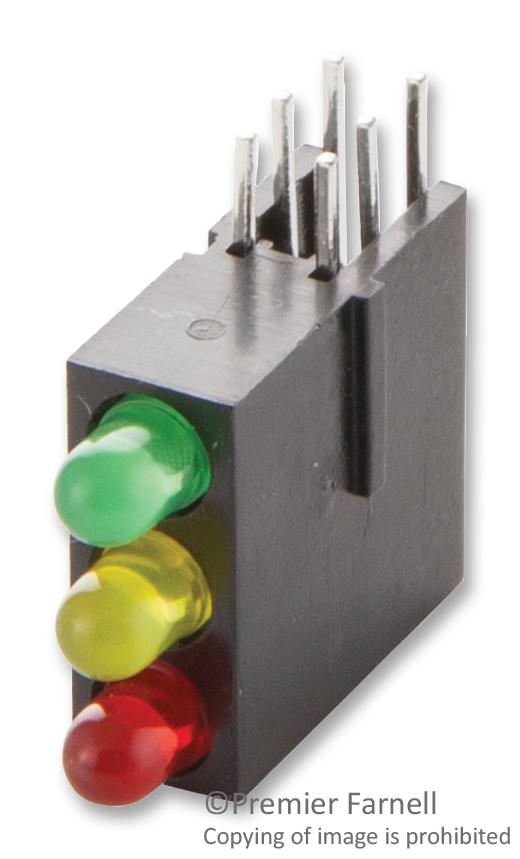

MENTOR - 1882.2781 - Circuit Board Indicator, Red, Yellow, Green, 3 LEDs, Through Hole, T-1 (3mm)
- LED Colour: Red, Yellow, Green
- No. of LEDs: 3LEDs
- LED Mounting: Through Hole
- Bulb Size: T-1 (3mm)
- Forward Current / Colour: R 25mA, Y 30mA, G 25mA
- Luminous Intensity / Colour: R 3mcd, Y 15mcd, G 20mcd
- Forward Voltage / Colour: R 2.25V, Y 2.1V, G 2.2V
- Viewing Angle: 60°
- Height: 12mm
- Width: 4.95mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Current If Luminous Intensity: 10mA
- Display Size: 4.95mm x 12mm
- External Depth: 12.5mm
- Forward Current If: 30mA
- Forward Current If Max: 30mA
- Green Luminous Intensity: 12.5mcd
- LED / Lamp Size: 3mm / T-1
- LED Configuration: Array
- LED Type: Multicolour
- Lead Cross-section Depth: 0.5mm
- Lead Cross-section Width: 0.5mm
- Lead Length: 3.2mm
- Lead Spacing: 2.54mm
- Lens Shape: Round
- Luminous Intensity Green Max: 12.5mcd
- Luminous Intensity Green Min: 5mcd
- Luminous Intensity Red: 5mcd
- Luminous Intensity Red Max: 5mcd
- Luminous Intensity Red Min: 2mcd
- Luminous Intensity Yellow Max: 12.5mcd
- Luminous Intensity Yellow Min: 5mcd
- No. of Pins: 6Pins
