description

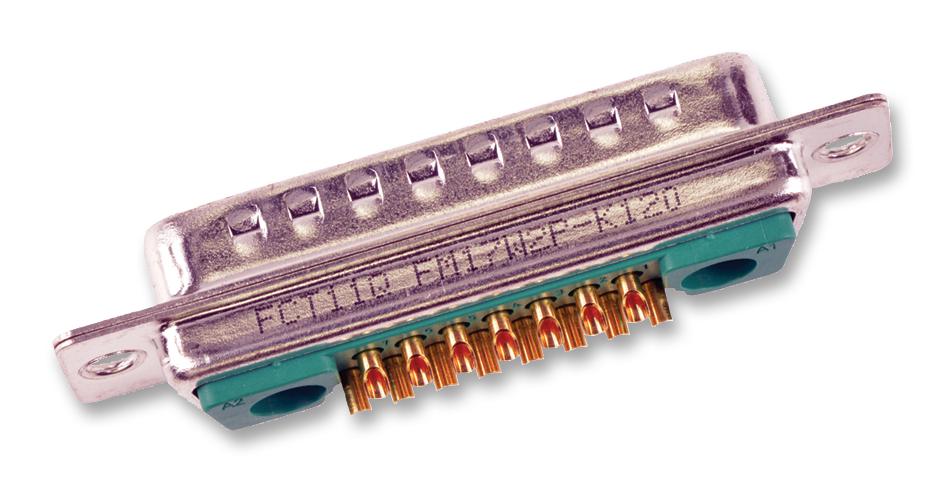

MOLEX / FCT - 172704-0017 - Combination Layout D Sub Connector, 172704, DB-17W2, Plug, 17 Contacts, 15 Signal, 2 Power
- Product Range: 172704 Series
- Insert Arrangement: DB-17W2
- No. of Signal Contacts: 15Contacts
- Gender: Plug
- No. of Power Positions: 2
- Contact Termination Type: Solder Cup
- D Sub Shell Size: DB
- Connector Body Material: Steel Body
- Contact Material: Brass
- Contact Plating: Gold Plated Contacts
- Connector Mounting: Cable Mount, Panel Mount
- Contact Termination: Solder
- Contact Type: 15 Signal, 2 Power
- No. of Contacts: 17Contacts
