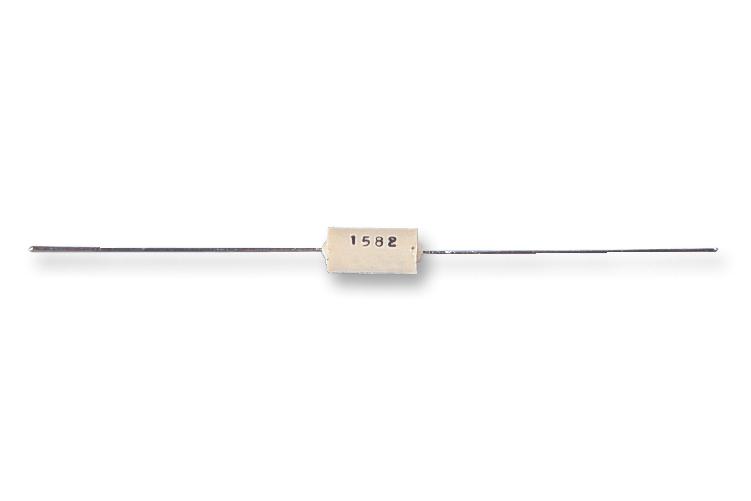

FERROPERM - 1582 22UH 43A - RF Choke, RF Choke, 1582, 22 µH, 430 mA, ± 10%
- Product Range: 1582 Series
- Inductance: 22µH
- DC Current Rating: 430mA
- DC Resistance Max: -
- Inductance Tolerance: ± 10%
- Self Resonant Frequency Min: -
- Body Diameter: 5.2mm
- Core Material: Ferrite
- External Length / Height: 11.4mm
- Inductance Measurement Frequency: 2.5MHz
- Inductor Type: Inductor
- Lead Diameter: 0.73mm
- Lead Length: 35mm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -55°C
- Q Factor: 65
- Q Test Frequency: 2.5MHz
- Resonant Frequency: 45MHz
