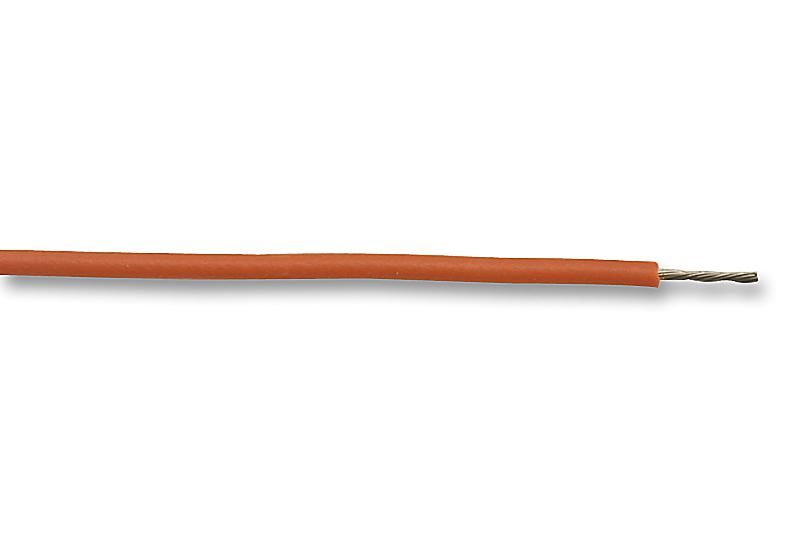

ALPHA WIRE - 1553 OR005 - Wire, Stranded, Hook Up MIL-W-76B Type MW, PVC, Orange, 20 AWG, 0.51 mm², 100 ft, 30.5 m
- Jacket Material: PVC
- Jacket Colour: Orange
- Wire Gauge: 20AWG
- Conductor Area CSA: 0.51mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- No. of Max Strands x Strand Size: 10 x 30AWG
- Voltage Rating: 1kV
- Conductor Material: Tinned Copper
- External Diameter: 1.75mm
- Approval Specification: MIL-W-76 B Type MW
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
