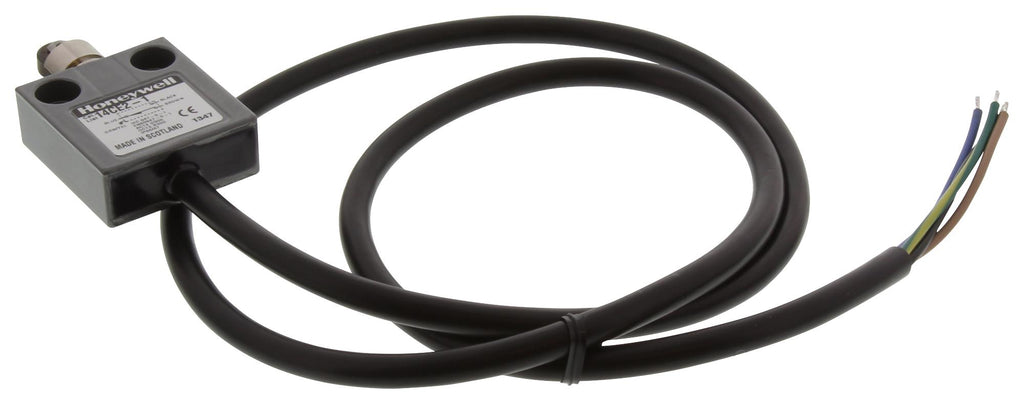

HONEYWELL - 14CE2-1 - Limit Switch, Top Roller Plunger, SPDT, 3 A, 240 V, 11.8 N, 14CE
- Limit Switch Actuator: Top Roller Plunger
- Contact Configuration: SPDT
- Contact Current AC Max: 3A
- Contact Voltage AC Max: 240V
- Operating Force Max: 11.8N
- Product Range: 14CE Series
- Contact Current DC Max: 3A
- Contact Voltage DC Max: 28V
- SVHC: No SVHC (07-Jul-2017)
- Actuator Type: Roller Plunger
- Contact Current Rating: 5A
- External Depth: 16mm
- External Length / Height: 44.3mm
- External Width: 40mm
- Fixing Centres: 25mm
- IP / NEMA Rating: IP65
- No. of Electrical Operations: 60000
- No. of Mechanical Operations: 5000000
- Operating Position: 28.5
- Operating Temperature Max: 70°C
- Operating Temperature Min: 0°C
- Pre-travel: 1.8mm
- Switch Terminals: Quick Connect
- Thermal Current Rating: 5A
