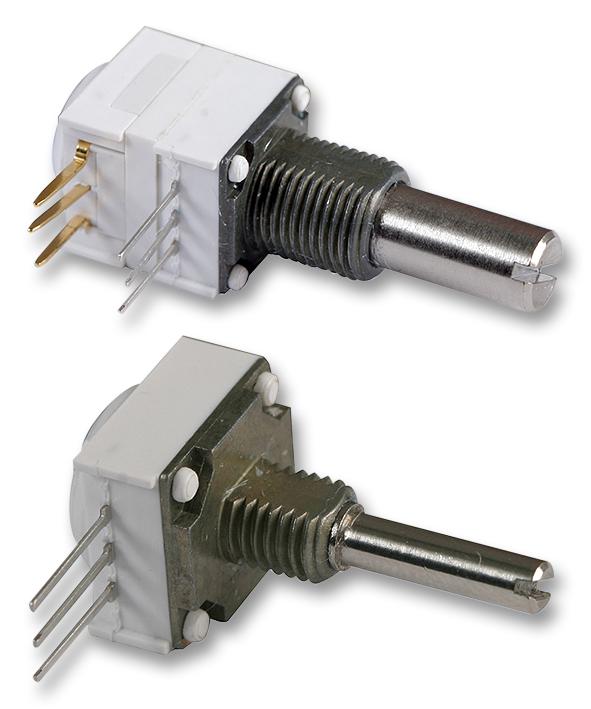

VISHAY - 14810A0BHSX10103KA - Rotary Potentiometer, Conductive Plastic, 10 kohm, 1 Turns, Linear, 500 mW, ± 10%, 148
- Track Resistance: 10kohm
- No. of Turns: 1Turns
- Track Taper: Linear
- Power Rating: 500mW
- Resistance Tolerance: ± 10%
- Product Range: 148 Series
- Potentiometer Mounting: -
- Shaft Diameter: 3.17mm
- No. of Gangs: 1
- Adjustment Type: Screwdriver Slot
- Shaft Length: 19.05mm
- Operating Temperature Max: 120°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +120°C
- Resistance: 10kohm
- Resistor Element Material: Conductive Plastic
- Temperature Coefficient: ± 1000ppm/°C
- Termination Type: Radial Leaded
- Voltage Rating: 350V
