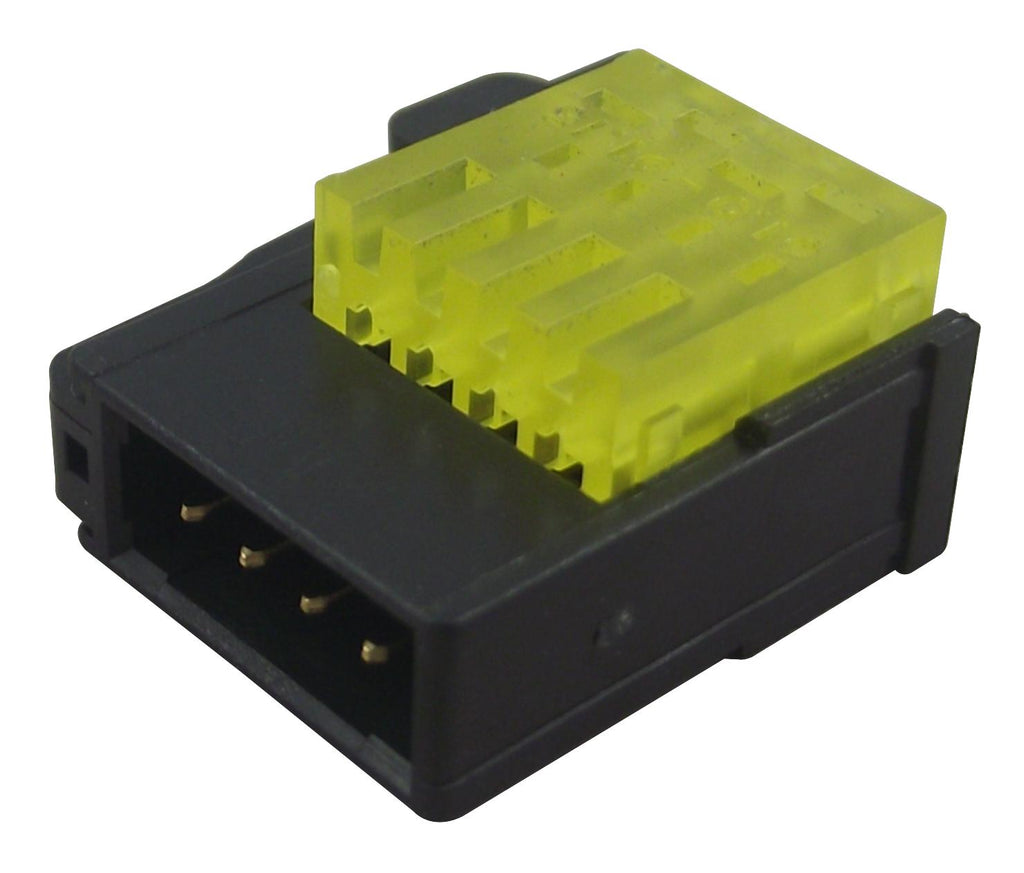

TE CONNECTIVITY - 1473562-4 - Rectangular Power Connector, Yellow, 4 Contacts, RITS, Cable Mount, IDC / IDT, 2 mm, Plug
- Pitch Spacing: 4mm
- No. of Contacts: 4Contacts
- Gender: Plug
- Product Range: RITS Series
- Contact Termination Type: IDC / IDT
- No. of Rows: 1Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Copper
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: UL
- Colour: Yellow
- Current Rating: 3A
- De-mating Force: 0.1N
- External Length / Height: 8.2mm
- External Width: 16.1mm
- Flammability Rating: UL94V-0
- Insulation Diameter Max: 1.15mm
- Insulation Diameter Min: 1mm
- Length: 18.5mm
- Material: PBT / Polycarbonate
- Mating Force: 1.5N
- Voltage Rating VAC: 32V
- Wire Area Size Max: 0.3mm²
- Wire Area Size Min: 0.2mm²
- Wire Size AWG Max: 22AWG
- Wire Size AWG Min: 24AWG
- Withstand Voltage: 500V
