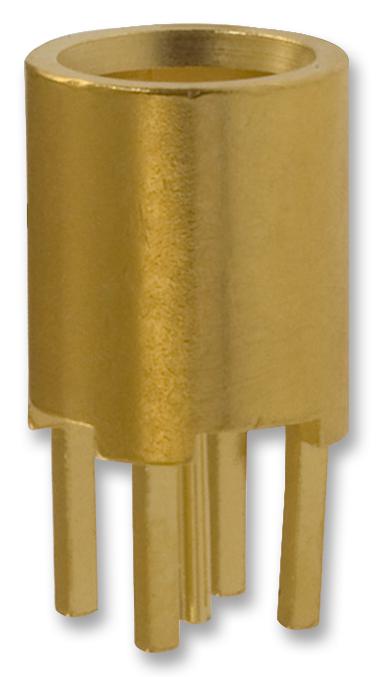

JOHNSON - CINCH CONNECTIVITY - 133-3701-231 - RF / Coaxial Connector, MCX Coaxial, Straight Jack, Solder, 50 ohm, RG178, RG316, Beryllium Copper
- Connector Type: MCX Coaxial
- Connector Body Style: Straight Jack
- Coaxial Termination: Solder
- Impedance: 50ohm
- Coaxial Cable Types: RG178, RG316
- Contact Material: Beryllium Copper
- Contact Plating: Gold Plated Contacts
- Frequency Max: 6GHz
- Connector Mounting: PCB Mount
- Product Range: -
- SVHC: Lead (15-Jan-2019)
- Connector Mounting Orientation: PC Board
- Termination Method: Solder
