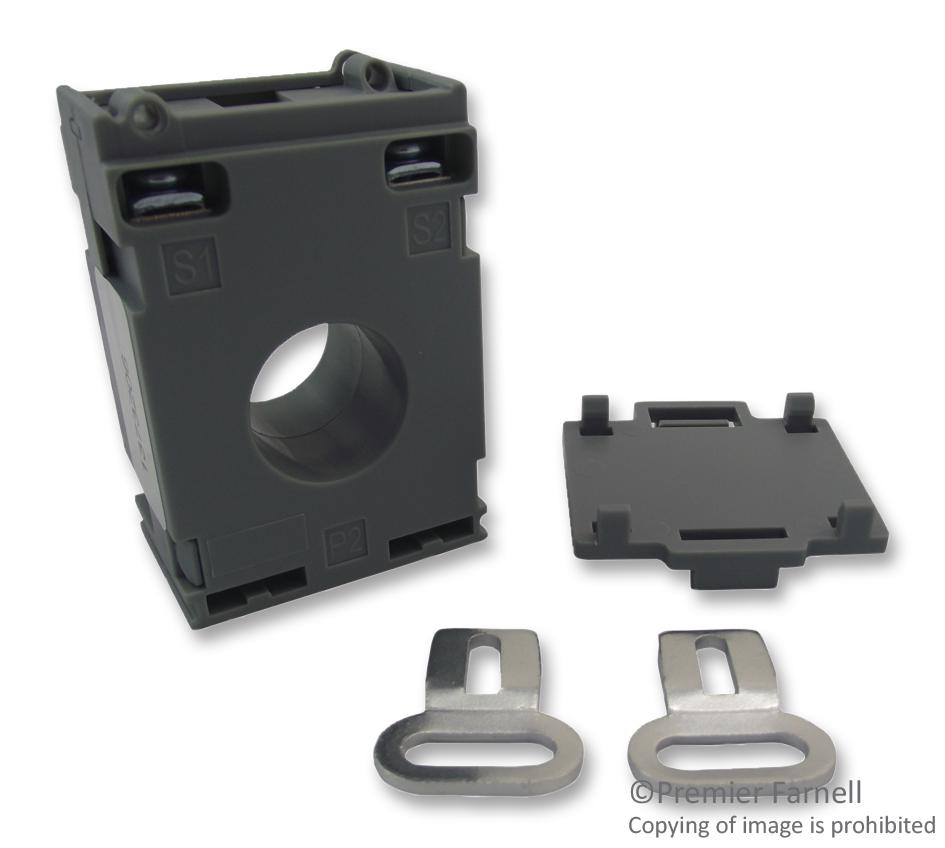

HOBUT - 13-5-A1 - Current Transformer, Molded Case, 40:5, Class 3, 1 VA, 21 mm
- Input Current: 40A
- Turns Ratio: -
- Frequency Min: -
- Frequency Max: -
- Transformer Mounting: DIN Rail
- Product Range: HOBUT Series
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: BS, EN, IEC
- Cable Diameter Max: 20mm
- Class: 3
- Core Diameter: 21mm
- Current Range AC: 40A
- External Depth: 30mm
- External Length / Height: 65mm
- External Width: 45mm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Power Rating: 1VA
- Primary Current: 40A
- Secondary Current Nom: 5A
- Secondary Power: 1VA
- Transformer Type: Current
- Type: Built in sealable terminal cover
