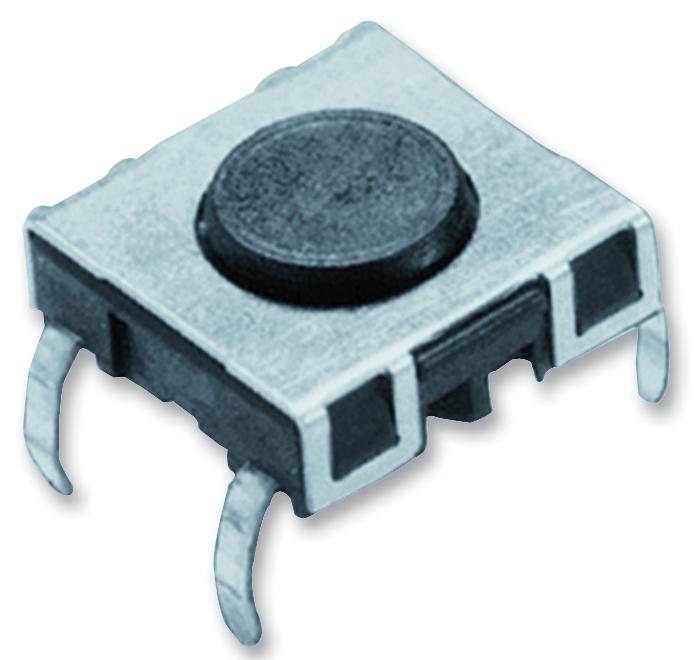

SCHURTER - 1241.1608 - Tactile Switch, PMS, Top Actuated, Through Hole, Round Button, 220 gf, 50mA at 42VDC
- Product Range: PMS Series
- Actuator Orientation: Top Actuated
- Switch Mounting: Through Hole
- Actuator Style: Round Button
- Actuating Force: 220gf
- Contact Rating: 50mA at 42VDC
- Switch Dimensions (L x W): 11.4mm x 11.4mm
- IP Rating: IP67
- Illumination: Non Illuminated
- SVHC: No SVHC (15-Jan-2019)
- Actuation Type: Top
- Contact Configuration: SPST-NO
- Contact Current AC Max: 50mA
- Contact Current DC Max: 50mA
- Contact Current Max: 50mA
- Contact Voltage AC Max: 30V
- Contact Voltage AC Nom: 30V
- Contact Voltage DC Max: 42V
- Contact Voltage DC Nom: 42V
- External Depth: 11.4mm
- External Length / Height: 4.8mm
- External Width: 11.4mm
- No. of Mechanical Operations: 10
- Operating Force: 2.2N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Switch Terminals: Solder
