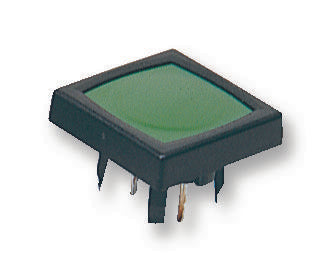

SCHURTER - 12411100795 - Tactile Switch, MCS18, Top Actuated, Through Hole, Square Button, 300 gf, 125mA at 48VDC
- Product Range: MCS18 Series
 - Actuator Orientation: Top Actuated
 - Switch Mounting: Through Hole
 - Actuator Style: Square Button
 - Actuating Force: 300gf
 - Contact Rating: 125mA at 48VDC
 - Switch Dimensions (L x W): 18mm x 18mm
 - IP Rating: -
 - Illumination: Non Illuminated
 - SVHC: No SVHC (27-Jun-2018)
 - Actuation Type: Top
 - Actuator / Cap Colour: Green
 - Colour: Green
 - Contact Configuration: SPST-NO
 - Contact Current @ Contact Voltage DC Max: 125mA
 - Contact Current DC Max: 125mA
 - Contact Current Max: 125mA
 - Contact Resistance: 115mohm
 - Contact Voltage DC Max: 48V
 - Contact Voltage DC Nom: 48V
 - External Depth: 18mm
 - External Length / Height: 4.2mm
 - External Width: 18mm
 - Lead Spacing: 7.62mm
 - No. of Mechanical Operations: 1000000
 - Operating Force: 3N
 - Operating Temperature Max: 60°C
 - Operating Temperature Min: -25°C
 - Panel Cutout Diameter: 13mm
 - Switch Operation: Off-(On)
 - Switch Terminals: Solder
