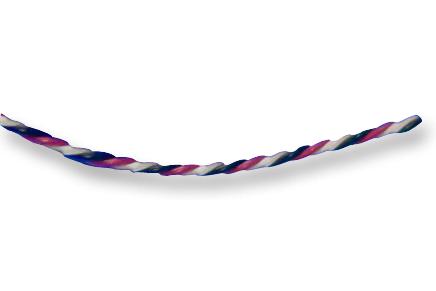

ALPHA WIRE - 1102 MC005 - Multicore Cable, Control, Unscreened, 4 Core, 32 AWG, 0.034 mm², 100 ft, 30.5 m
- Cable Shielding: Unscreened
- No. of Cores: 4Core
- Wire Gauge: 32AWG
- Conductor Area CSA: 0.034mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- Jacket Colour: Multi-coloured
- No. of Max Strands x Strand Size: 7 x 0.079mm
- Conductor Material: Copper
- Jacket Material: PVC
- External Diameter: 1.5mm
- Voltage Rating: 200V
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Cable Type: Unshielded
- Conductor Make-up: 7 / 40AWG
- Outer Diameter: 1.5mm
- Shield Type: Unshielded
- Wire Size: 32AWG
