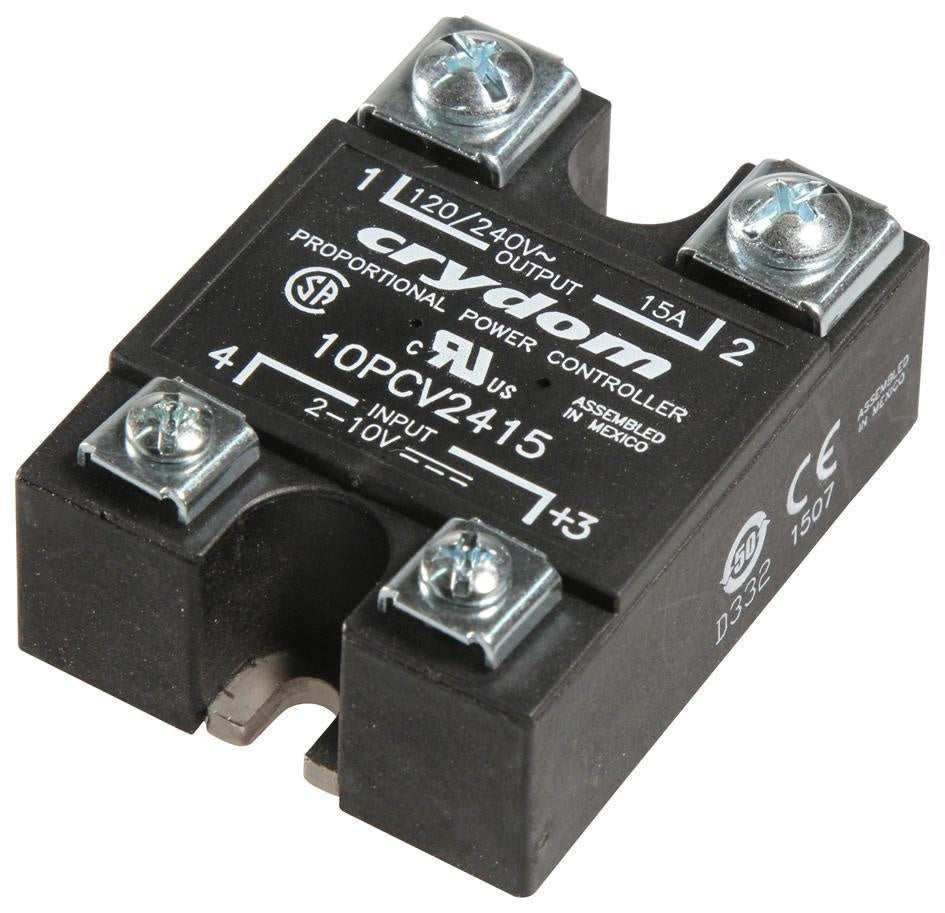

SENSATA/CRYDOM - 10PCV2415 - Solid State Relay, SPST-NO, 15 A, 240 Vrms, Panel Mount, Screw, Proportional Output
- Contact Configuration: SPST-NO
 - Load Current: 15A
 - Operating Voltage Max: 240Vrms
 - Relay Mounting: Panel
 - Relay Terminals: Screw
 - Switching Mode: Proportional Output
 - Operating Voltage Min: 100Vrms
 - Control Voltage Min: 2VDC
 - Control Voltage Max: 10VDC
 - Product Range: PCV Series
 - SVHC: No SVHC (12-Jan-2017)
 - Blocking voltage: 600V
 - Control Current @ 5VDC: 4mA
 - Control Voltage DC Max: 10VDC
 - Control Voltage DC Min: 2VDC
 - Control Voltage Range: 2V DC to 10V DC
 - Control Voltage Type: DC
 - External Depth: 58.4mm
 - External Length / Height: 23mm
 - External Width: 45.7mm
 - I2t: 94s
 - Isolation Voltage: 2.5kV
 - Leakage Current: 10mA
 - Load Current RMS Max: 15A
 - Operating Voltage Range: 100Vrms to 240Vrms
 - RMS Load Current Min: 150mA
 - RMS Load Voltage Max: 240V
 - RMS Load Voltage Min: 100V
 - Rate of Voltage Change dv / dt: 200V/µs
 - Surge Current: 150A
