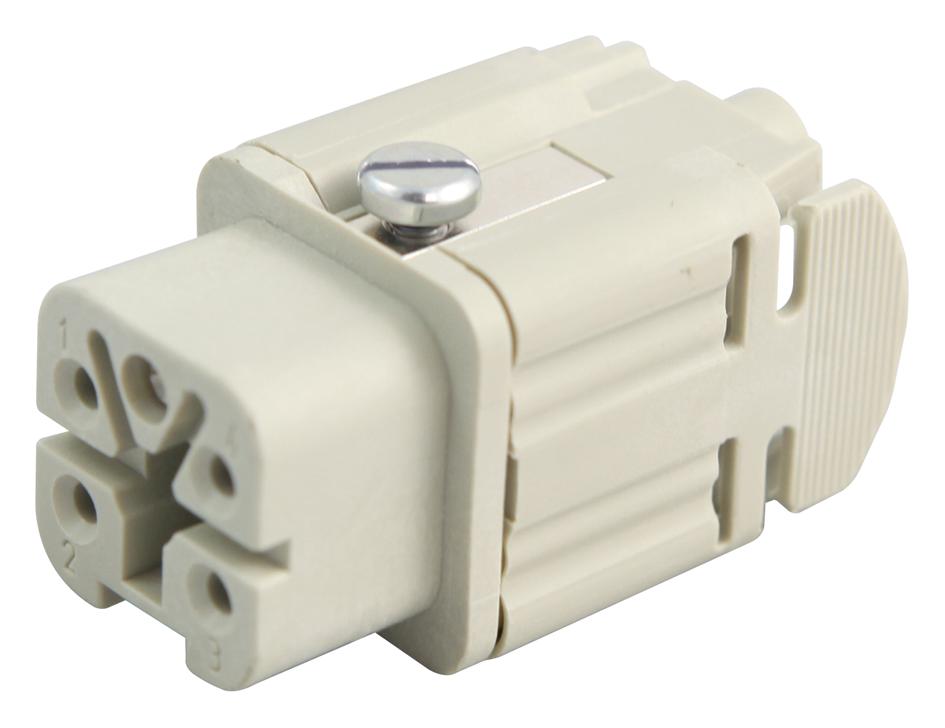

EPIC - 10.4320 - Heavy Duty Connector, 4+PE, Wire Protection, HA, Insert, 4 Contacts, A3/4, Receptacle, Screw Socket
- Product Range: HA Series
- Heavy Duty Connector Type: Insert
- No. of Contacts: 4 Contacts
- Rectangular Shell Size: A3/4
- Gender: Receptacle
- Heavy Duty Contact Type: Screw Socket
- Current Rating: 10A
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CSA, UL, VDE
- Connector Type: Rectangular Power
- Contact Gender: Socket
- Contact Material: Copper Alloy
- Contact Plating: Silver Plated Contacts
- Contact Termination: Screw
- Contact Termination Type: Screw
- For Use With: HA 4 Housings & Hoods
- IP / NEMA Rating: IP65
- No. of Contacts: 4Contacts
- No. of Rows: 2 Row
- No. of Rows: 2Rows
- Termination Method: Screw
- Voltage Rating: 600V
- Voltage Rating VAC: 400V
- Wire Area Size Max: 2.5mm²
- Wire Area Size Min: 0.5mm²
- Wire Size AWG Max: 14AWG
- Wire Size AWG Min: 20AWG
- Working Voltage: 400V
