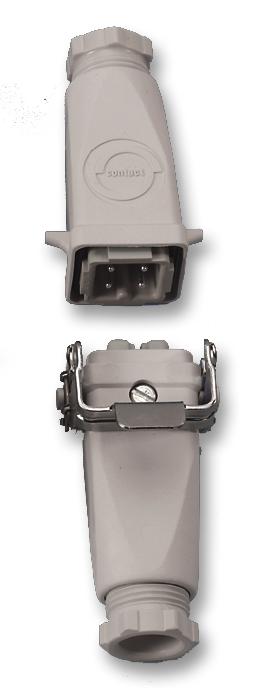

EPIC - 10.4264+10.4291+10.4200+10.4210 - Heavy Duty Connector, Coupler Kit, EPIC HBS Series, Cable Mount, Plug, Receptacle, 3 Contacts
- Product Range: EPIC HBS Series
- Connector Mounting: Cable Mount
- Gender: Plug, Receptacle
- No. of Contacts: 3Contacts
- Contact Gender: Pin, Socket
- No. of Rows: 2Rows
- Contact Termination Type: Screw
- Connector Shell Size: HA 3
- Contact Material: Copper
- Contact Plating: Silver Plated Contacts
- SVHC: No SVHC (15-Jan-2019)
- Connector Type: Rectangular
- Contact Resistance: 2mohm
- Contact Termination: Screw
- Current Rating: 10A
- IP / NEMA Rating: IP65
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Termination Method: Screw
- Voltage Rating VAC: 400V
- Wire Area Size Max: 2.5mm²
- Wire Area Size Min: 0.5mm²
- Working Voltage: 400V
