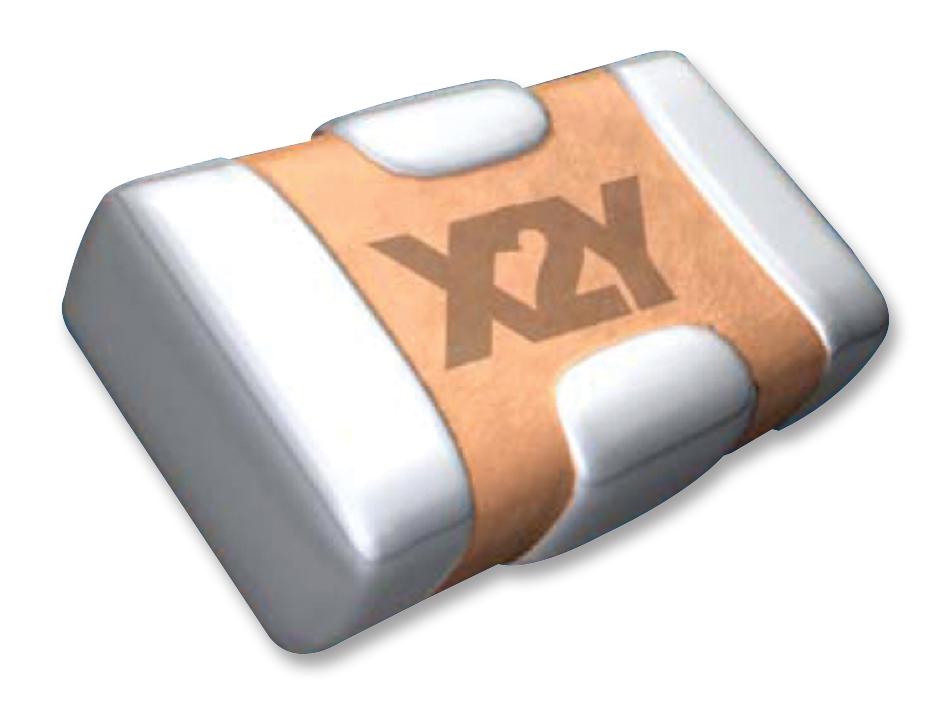

JOHANSON DIELECTRICS - 101X14N470MV4T - SMD Multilayer Ceramic Capacitor, 47 pF, 100 V, 0603 [1608 Metric], ± 20%, C0G / NP0, X2Y
- Capacitance: 47pF
- Voltage Rating: 100V
- Ceramic Capacitor Case: 0603 [1608 Metric]
- Capacitance Tolerance: ± 20%
- Dielectric Characteristic: C0G / NP0
- Product Range: X2Y Series
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 20%
- Capacitor Terminals: SMD
- No. of Pins: 4Pins
- Operating Temperature Range: -55°C to +125°C
