ZVP4424A MOSFET, P, Logic, E-Line Diodes Inc.

DIODES INC.SKU:ZVP4424A Bestelcode:9526129

Prijs:
Actie prijs€2,92

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (556 units)

Documenten en downloads

Omschrijving

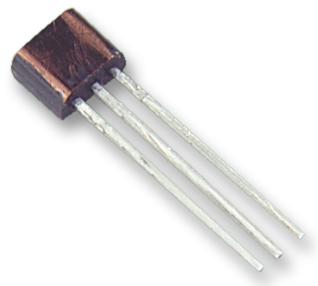

DIODES INC. - ZVP4424A - Power MOSFET, P Channel, 240 V, 200 mA, 15 ohm, TO-226AA, Through Hole

  • Transistor Polarity: P Channel
  • Continuous Drain Current Id: 200mA
  • Drain Source Voltage Vds: -240V
  • On Resistance Rds(on): 15ohm
  • Rds(on) Test Voltage Vgs: -10V
  • Threshold Voltage Vgs: -1.4V
  • Power Dissipation Pd: 750mW
  • Transistor Case Style: TO-226AA
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: Lead (15-Jan-2019)
  • Current Id Max: 200mA
  • Current Temperature: 25°C
  • Device Marking: ZVP4424A
  • Full Power Rating Temperature: 25°C
  • Lead Spacing: 1.27mm
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Power Dissipation Ptot Max: 750mW
  • Pulse Current Idm: 1A
  • Voltage Vds Typ: -240V
  • Voltage Vgs Max: -1.4V
  • Voltage Vgs Rds on Measurement: -10V
